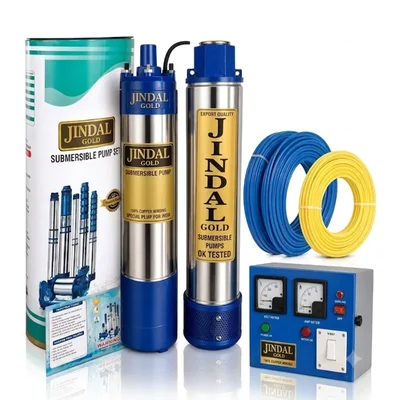

Jindal 0.5 HP 10 Stage V3 Single Phase Water Cooled Submersible Pump, 100ft Head, 3000 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire

Brand: Generic ( Made in India )

Jindal 0.5 HP 10 Stage V3 Single Phase Water Cooled Submersible Pump, 100ft Head, 3000 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire

Name: Jindal 0.5 HP 10 Stage V3 Single Phase Water Cooled Submersible Pump, 100ft Head, 3000 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire
Brand: Generic ( Made in India )
SKU: TI-J0-80119
Price: 6999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J0-80119

MRP : ₹9500 ₹6999

26% OFF!

Get Extra ₹105 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹6999 (Including GST)

MRP : ₹9500

26% OFF!

Get Extra ₹105 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 0.5 HP 10 stage V3 Submersible Pump

100ft max Head, 50 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 0.5 hp
Weight (Approx.) : 16.5 kg
Flow Rate : 50 lpm
Head : 30.48 meter

Power : 0.5 Hp
Weight (Approx.) : 16.5 Kg
Flow Rate : 50 lpm
Head : 30.48 meter
Product Name : Borewell Submersible Pump
Wattage : 0.37 kW
Supply Voltage : 150-240 Volt, 50 Hertz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 10 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 100 Feet (30.48 Meter)
Max. Flow/Discharge Rate : 50 LPM (3000 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 millimeter (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Die Cast
Impeller : PVC
Pump Shaft : Steel

A highly efficient water-cooled submersible pump fully submerged in the fluid it pumps, eliminating the need for external cooling. Its design prevents overheating, ensures quiet operation, and is ideal for deep wells, boreholes, and applications requiring constant immersion.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption
Thrust Bearing

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty:

1 Year WARRANTY on manufacturing defects only.

Warranty Terms:

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Usage

Ensure the pump is fully submerged before switching it on to avoid dry running.
Check the control panel regularly for any loose connections or burnt wires.
Inspect the 30 meter submersible cable periodically to ensure there are no cuts or water seepage.
Use the provided safety wire correctly to anchor the pump and relieve tension from the electrical cable.
Clean the pump exterior periodically if pumping water with high silt content to prevent clogging.
