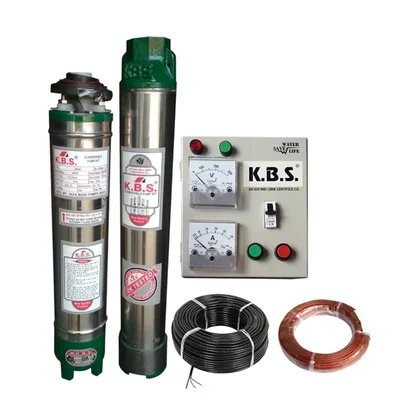

KBS 0.5 HP 12 Stage(3 inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty

Brand : KBS

SKU : TI-K0-17415

MRP : ₹9000

₹8300

8% OFF!

17 people have bought this recently

Get Extra ₹125 OFF on Prepaid Orders

Delivery By: Jun 19 - Jun 21

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

KBS 0.5 HP 1 Phase 12 Stage Submersible Pump With Control Panel

130Ft. Max. Head, 40 LPM Max. Flow Rate

3 inch Bore, V3 Type

1 Year Warranty

SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.

Country of origin: India

Specification

Brand: KBS
Power : 0.5 hp
Weight (Approx.) : 18.5 kg
Flow Rate : 40 lpm
Head : 39.62 meter

Product Type : Submersible Pump
Brand : KBS
Wattage : 0.37 kW
Supply Voltage : 150-240 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V3 Type
Suitable Bore Size : 3 inch (76.2 mm)
Cora : 3
Max. Head Range : 130 Ft. (39.62 Meter)
Max. Flow/Discharge Rate : 40 LPM (2400 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Stamping : 175 mm

Description

This KBS 0.5HP single-phase water-cooled submersible pump is a type of pump designed for underwater applications. This specific pump operates on a single-phase electrical supply, which is common in residential and small-scale agricultural settings where three-phase power may not be available.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption.
Thrush Bearing

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Material Of Construction :

Motor Body : Stainless Steel
Pump Bowl : PVC
Motor Shaft : Steel
Thrust Bearing : Carbon Vs Stainless Steel
Rotor : Die Cast

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
