Brand : CRI

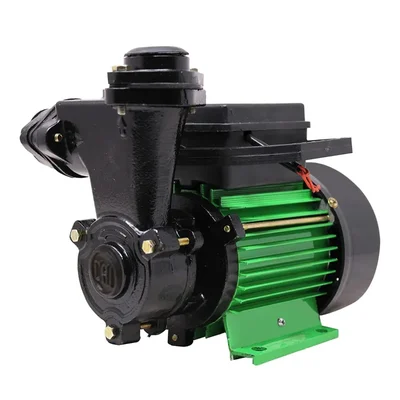

CRI 0.5 Hp 1Phase Copper Winding Mini Self Priming Monoblock Pump, 25m Head, 25X25mm (DINO SM53) - 1 Year Warranty
SKU : TI-C0-19909
MRP : ₹4900
₹3450
30% OFF!
Get Extra ₹52 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Show Similar
Notify Me
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 0.5 Hp 1Ph Self-Primig Monoblock Pump (DINO SM53)
25m Max. Head, 2100 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Model No. : DINO SM53
  • Product Type : Self- Priming Monoblock Pump
  • Brand : CRI
  • Power : 0.5 Hp (0.37 kW)
  • Electricity Connection : Single Phase
  • Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
  • Pipe Size (Suction X Delivery) : 25X25 mm
  • Suction Capacity : 8 Meter
  • Head Range : 6 to 25 Meter (20 to 82 Feet)
  • Discharge Range : 2100 to 600 LPH
  • Winding Material : Copper
  • Speed : 2880 RPM
  • Weight : 7 Kg (Approx.)

Material Of Construction :
  • Pump Casing : Cast Iron
  • Impeller : High Tensile Brass
  • Rotor : Aluminium Die Cast
  • Motor Shaft : SS 410
  • Cooling Fan : Poly Propylene - Co Polymer
  • Mechanical Seal : Carbon & Ceramic
Description
C.R.I. Self-priming monoblock pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noise free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. Non-self priming pumps with end suction and radial delivery.

Features

 :
  • Sturdy and compact
  • In-built with T.O.P
  • Double shielded ball bearing,  so no need of external lubrication
  • Powder coated motor body
  • High durability

Applications

 :
  • Domestic
  • Small Garden
  • Pressure Boosting
  • Civil Application
  • RO Applications
  • House Watering System

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only.
