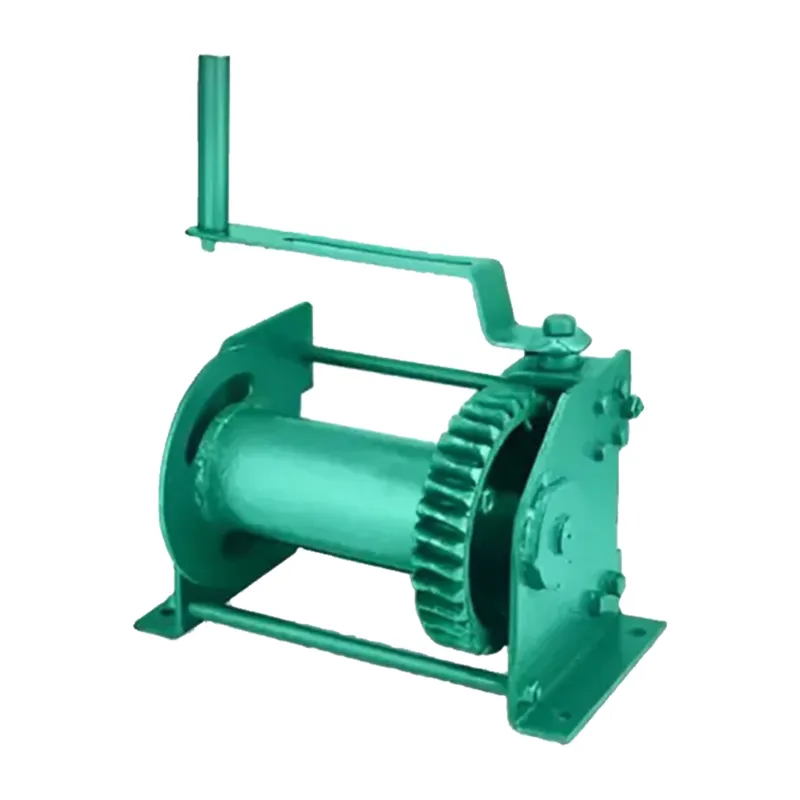

Heavy Duty 0.5 Ton Worm Gear Hand Winch by Globe - 12 Months Warranty
Worm Gear hand winches are Heavy duty Worm winches, Drums are fitted with Worm gears and worm shafts are mounted on ball and thrust bearings which gives our winches effortless operations. Hand winches are available in foot Mounted as well as wall-mounted as per application. Our Winches has a Modular design, compact & lightweight winches.
Used for hoisting and pulling loads.
Ratchet & pawl Type Braking arrangement
Completely bearing mounted winch.
Plane rope drum for multilayering of wire rope
Low hand effort.
Model No : HWW1
Product Type : Worm Gear Hand Winch
Brand : Made In India
Capacity : 0.5 Ton
Hand Effort (Kg) : 9
Dimension A (mm):307
Dimension B (mm):277
Dimension C (mm):100
Dimension D (mm):160
Dimension E (mm):193
Dimension F (mm):259
Wire Dia (mm) :6
Drum Winding Capacity (m):30
Packing Measurement (LxWxH) : 44X36X31 Cm
Net Weight (Kg) : 11.5
Pulling & lifting of medium Loads, erection of Pillars and Poles, Tensioning of Electric Lines.
