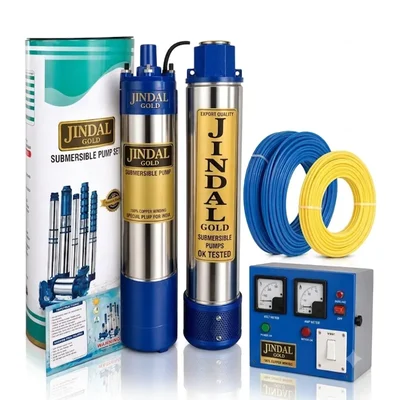

Jindal Gold 0.5 HP 10 Stage Water Submersible Pump, Water Cooled, V4 0.5 HP, 200ft Head 3600 LPH

Brand: Generic ( Made in India )

Jindal Gold 0.5 HP 10 Stage Water Submersible Pump, Water Cooled, V4 0.5 HP, 200ft Head 3600 LPH

Name: Jindal Gold 0.5 HP 10 Stage Water Submersible Pump, Water Cooled, V4 0.5 HP, 200ft Head 3600 LPH
Brand: Generic ( Made in India )
SKU: TI-JG-79450
Price: 6999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-JG-79450

MRP : ₹11000 ₹6999

36% OFF!

Get Extra ₹105 OFF on Prepaid Orders

Estimated Delivery By: Aug 6 - Aug 8

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹6999 (Including GST)

MRP : ₹11000

36% OFF!

Get Extra ₹105 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal Gold 0.5 HP 10 stage V4 Submersible Pump

200ft max Head, 60 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 0.5 hp
Weight (Approx.) : 16.5 kg
Flow Rate : 60 lpm
Head : 61 meter

Product Name: Borewell Submersible Pump
Wattage: 0.37 kW
Supply Voltage: 150-220 Volt, 50 Hz, AC Power Supply
Electricity Connection: Single Phase
No Of Stages: 10 Stage
Pump Type: V4
Suitable Bore Size: 4 inch (100 mm)
Max. Head Range: 200 Feet (61 Meter)
Max. Flow/Discharge Rate: 60 LPM (3600 LPH)
Pipe Size (Suction x Delivery): 25 x 25 mm (1 x 1 inch)
Cooling Type: Water Cooled
Winding Material: Copper

Material Of Construction:

Motor Body: Stainless Steel
Motor Rotor: Copper
Impeller: Noryl (Ivory)
Pump Shaft: SS-410

A high-performance water-cooled submersible pump engineered to operate completely submerged in water, efficiently dissipating motor heat into the pumped fluid for continuous heavy-duty operation. Built with a corrosion-resistant stainless steel body and dynamically balanced rotating parts, this V4 single-phase pump delivers exceptional electrical and mechanical efficiency even under wide voltage fluctuations.

Features

Corrosion-resistant stainless steel body for long-lasting durability.
Specially designed for low voltage operation and high voltage fluctuations.
High electrical and mechanical efficiency with low power consumption.
Superior water-cooled design for enhanced motor heat dissipation.
Dynamically balanced rotor and rotating parts ensure smooth, uniform clearance.
Heavy-duty bearing bush designed to withstand high axial thrust loads.
Comes complete with a control panel, 30M submersible cable, and safety wire.

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water and domestic household supply.
Drip irrigation, sprinkler systems, and farm gardening.
Multi-story housing complexes, hospitals, and high-rise buildings.
Firefighting systems, fountains, landscaping, and service stations.
Mine de-watering, cooling water circulation, and booster systems.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Periodically check control panel connections and incoming supply voltage.
Do not allow the pump to run dry; dry running causes severe internal damage.
Check safety wire tightness and cable insulation integrity during routine inspections.
Clear any debris or sand accumulation around the suction strainer if discharge decreases.
