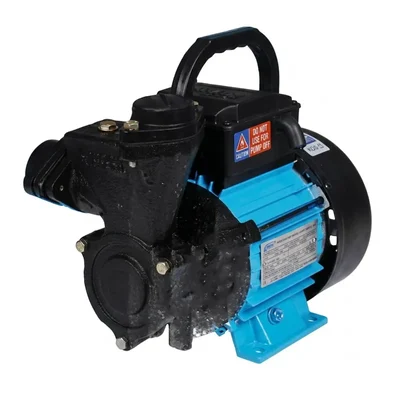

KSB 0.5 HP 0.37kW 240V Single Phase CED Coated Self Priming Mini Water Pump AQUA SWIFT II

Brand: KSB

KSB 0.5 HP 0.37kW 240V Single Phase CED Coated Self Priming Mini Water Pump AQUA SWIFT II

Name: KSB 0.5 HP 0.37kW 240V Single Phase CED Coated Self Priming Mini Water Pump AQUA SWIFT II
Brand: KSB
SKU: TI-K0-78633
Price: 3953 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-K0-78633

MRP : ₹5400 ₹3953

27% OFF!

Get Extra ₹59 OFF on Prepaid Orders

Estimated Delivery By: Jul 30 - Aug 1

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹3953 (Including GST)

MRP : ₹5400

27% OFF!

Get Extra ₹59 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Compact 0.5 HP self-priming CED coated water pump with 22m head range and 7.5m suction lift for home supply.

Country of origin: India

Brand: KSB
Power : 0.5 hp
Weight (Approx.) : 6 kg
Flow Rate : 5.00 – 26.67 lpm
Head : 6 - 22 meter

Model: AQUA SWIFT II
Product Series: Aqua Series
Product Type: Self Priming Monoblock Pump
Power Rating: 0.37 kW / 0.5 HP
Head Range: 6 - 22 M
Discharge Range: 1600 - 300 LPH
Max. Suction Lift: 7.5 M
Rated Voltage: 240 V
Phase / Frequency: 1 Phase / 50 Hz
Insulation Class: B Class
Motor Winding: 99.9% Pure Copper
Protection Features: CED Coating & T.O.P.

The KSB AQUA SWIFT II is a compact 0.5 HP (0.37 kW) self-priming mini monoblock water pump designed for efficient domestic and residential water handling. Built with trusted German technology and manufactured in India, this pump features 99.9% pure copper motor winding and advanced Cathodic Electro Deposition (CED) coating to prevent rust and ensure extended service life. Capable of lifting water from a maximum suction depth of 7.5 metres, the AQUA SWIFT II delivers a head range of 6 to 22 metres with a discharge capacity ranging from 1600 to 300 LPH. It operates on a standard 240V, single-phase 50 Hz power supply and comes equipped with a Thermal Overload Protector (T.O.P.) to safeguard the motor against overheating and sudden voltage fluctuations.

Features

CED Coating (Cathodic Electro Deposition): Superior rust and corrosion resistance ensures long-term operational durability.
99.9% Pure Copper Winding: High-grade copper motor winding provides maximum electrical efficiency and reduces power loss.
Thermal Overload Protector (T.O.P.): Automatically trips the motor during severe temperature spikes or power overload to prevent burnout.
Compact & Portable Design: Ergonomic handle top allows for easy transportation, handling, and installation.
7.5 Metre Suction Lift: Efficient self-priming mechanism allows effective water draw from underground sumps, shallow wells, and municipal lines.

Applications

Pumping water from underground sumps and municipal water lines to overhead tanks in homes
Water pressure boosting for domestic bathrooms, taps, and geysers
Residential gardening, lawn irrigation, and small farmhouse utility needs
Water transfer for small residential apartments, villas, and utility spaces

Usage

Mount the pump securely on a dry, level, and well-ventilated surface near your primary water source.
Connect the suction hose to the inlet port (ensuring suction depth does not exceed 7.5 metres) and seal joints with Teflon tape.
Fill the pump chamber completely with clean water through the priming plug before turning on the power.
Attach the discharge pipe securely to the outlet port leading to your overhead tank or domestic supply line.
Plug the power cord into a properly grounded 240V, 50 Hz single-phase AC socket.
Check regularly to ensure the pump does not run dry, protecting the mechanical seal from damage.
