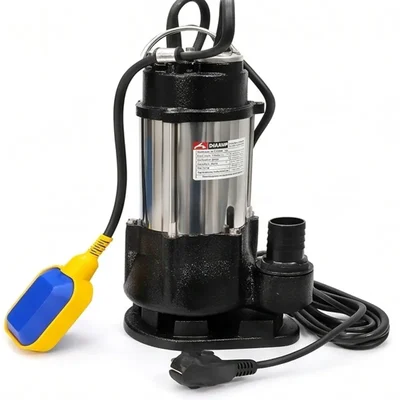

Kisan 0.5HP Cast Iron Sewage Submersible Pump Max 530 LPM Flow 16m Head, for Wastewater & Septic Tank KSSWP-50

• Pump Type: Sewage Submersible Pump
• Power Supply: 220 V, 50 Hz, Single Phase (1Ø)
• Motor Type: Induction Motor, Oil Filled
• Insulation Class: F Class
• Protection: IP68
• Outlet Size: 50 mm (2 Inch)
• Maximum Solid Handling: Up to 20 mm
• Body Material: Cast Iron
• Shaft Material: Stainless Steel
• Impeller Material: Cast Iron
• Mechanical Seal: Silicon Carbie / Carbon Ceramic
• Liquid Temperature: Up to 30°C
• Duty: Continuous Duty

Features

• Heavy-Duty Cast Iron Construction: The pump body and impeller are built with premium-grade cast iron, offering immense wear resistance against abrasive materials.
• Superior Solids Handling: Specifically designed to process slurries and clear suspended solid particles up to 20 mm without clogging.
• Advanced Mechanical Seal: Built with a professional seal arrangement to prevent liquid entry into the motor assembly.
• Reliable Oil-Filled Induction Motor: Incorporates an efficient Class F insulated induction motor that ensures safe internal cooling during continuous duty cycles.
• Corrosion-Resistant Stainless Steel Shaft: Outfitted with a high-strength stainless steel shaft that withstands demanding environments and prolongs service life.

Accessories

• 316L food grade 6 S.S Sensors

Applications

• Residential Septic Processing: Effortlessly transfers heavy wastewater out of household septic tanks.
• Basement & Pit Dewatering: Quickly evacuates accumulated floodwater or rainwater out of basement sumps and drainage pits.
• Industrial Effluent Disposal: Effectively handles non-corrosive industrial effluents and manufacturing chemical waste streams.
• Commercial Wastewater Treatment: Manages daily blackwater and greywater discharge for commercial properties.
• Civil Drainage Work: Works excellently for draining local municipal underground pits, trenches, and construction sites.

Usage

• Ensure that the pump is entirely submerged in fluid prior to activation to prevent structural overheating.
• Verify that the input voltage matches a stable 220V, 50Hz single-phase power supply to prevent motor burnouts.
• Do not utilize this unit to pump fluids exceeding temperatures of 30°C or liquids with highly corrosive chemical profiles.
• Avoid using the power cord to lift or lower the pump; always deploy a dedicated suspension chain or rope attached to the handle.
• Check that the maximum size of suspended particulates within the liquid does not exceed the rated 20 mm handling threshold.

Maintenance

• Regular Debris Inspections: Periodically extract the pump to clear away any tangled fibers or oversized debris lodged near the suction strainer or cast iron impeller.
• Insulation & Continuity Checks: Regularly test the insulation resistance of the power cable to confirm compliance with safety parameters.
• Oil Level & Seal Verifications: Have an authorized technician inspect the oil chamber and the condition of the Silicon Carbide seal periodically to prevent long-term fluid leakage.
• Storage Care: If storing the pump idle for a long period, clean it with clean water, dry thoroughly, and store it in a dry, covered space.
