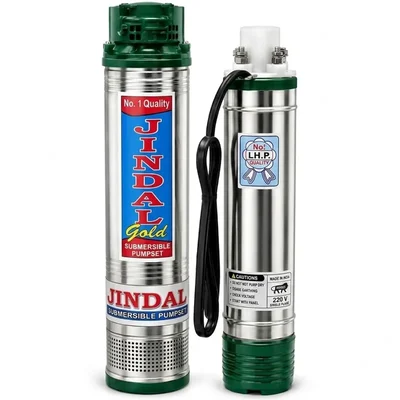

Jindal 0.5 HP 12 Stage V3 Single Phase Water Cooled Submersible Pump, 130ft Head

Brand: Generic ( Made in India )

Jindal 0.5 HP 12 Stage V3 Single Phase Water Cooled Submersible Pump, 130ft Head

Name: Jindal 0.5 HP 12 Stage V3 Single Phase Water Cooled Submersible Pump, 130ft Head
Brand: Generic ( Made in India )
SKU: TI-J0-80560
Price: 5629 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J0-80560

MRP : ₹7600 ₹5629

26% OFF!

Get Extra ₹84 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5629 (Including GST)

MRP : ₹7600

26% OFF!

Get Extra ₹84 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 0.5 HP 12 stage V3 Submersible Pump

130ft max Head, 40 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 0.5 hp
Weight (Approx.) : 18.5 kg
Flow Rate : 40 lpm
Head : 39 meter

Product Name : Borewell Submersible Pump
Wattage : 0.37 kW
Supply Voltage : 150 to 240 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 130 Feet (39 Meter)
Max. Flow/Discharge Rate : 40 LPM (2400 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

This Borewell submersible pump is designed for extracting water from deep underground sources efficiently at significant depths. A 0.5 hp borewell submersible pump is a compact yet powerful unit suitable for residential and agricultural applications where moderate water flow is required.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High electrical and mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency with low power consumption

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Maintenance

Ensure the pump is never operated without water to prevent dry run damage.
Regularly check electrical connections and voltage stability between 150 to 240 Volts.
Inspect output water flow periodically to detect any underground clogging or blockage.
Ensure proper installation inside a 3 inch borewell to avoid physical damage to the stainless steel body.
