Short Description

Y Type Manual Disc Filter (Female) for Irrigation

1 1/4 inch Size

Description

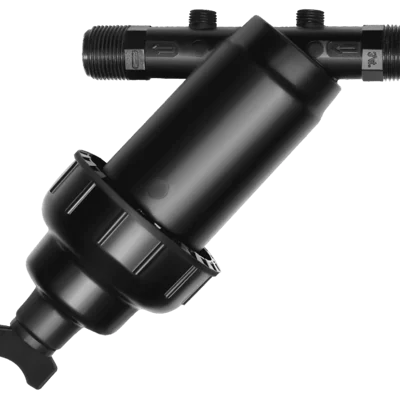

Manual Disc Filter Y-Type 1 1/4 inch (Female Thread)

Descriptions :

• Disc filter is a type of water filter primarily used in Irrigation.
• The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
• The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
• The water passes through the small passages in between and the impurities are trapped behind.


Features :

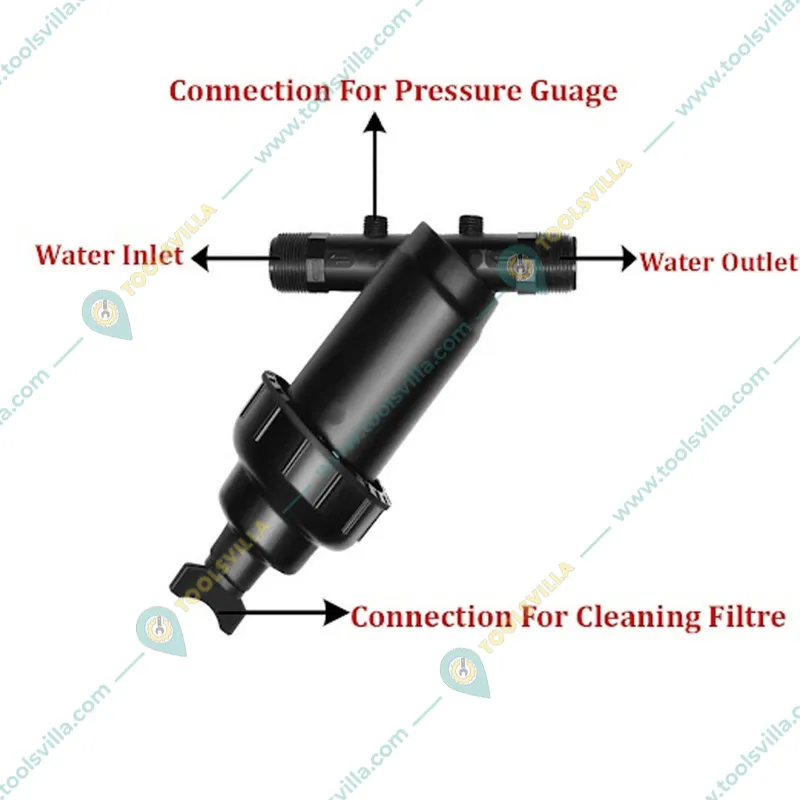

• Disk filters designed for Outside to Inside flow.
• Auxiliary Connections : Two pressure gauge ports with 1/4" male threaded connections.
• Filter body and cap connected by threaded connection to sustain high pressure and easy opening and closing.
• High filtration Efficiency.
• Spring loaded Disc cartridge for uniform compression of Disks.
• UV Protected, chemical and high pressure resistant reinforced plastic material used.

Specifications :

• Model No : HT-133Y (F)
• Product Type : Agriculture Y-Type Disc Filter
• Brand : Imported
• Size : 1.25 Inch
• Material : Reinforce Polypropylene
• Max. Working Pressure : 8 kg/cm2
• Inlet/ Outlet Connection : 1^1/4 Inch NPT Female Thread
• Range of Flow Rate : 12-16 m3/hr
• Recommended Flow : 15 m3/h (250 ltr/min)
• Filtration Surface Area : 409 cm2
• Distance between End Connections : 237 mm
• Filter Height : 320 mm

• Filter Width : 128 mm
• Cartridge Diameter : 70 mm

• Cartridge Length : 208 mm
• End Plug : 3/4 Inch Female Threaded
• Available Mesh : 120 Mesh

Applications :

• Household Water filtration
• Agriculture Irrigation
• Green Hose and small Farm Holdings
• Drip Irrigation
• Municipal Garden Irrigation

• Industrial Filtration
• Garden Lawn
