Brand: Jadever

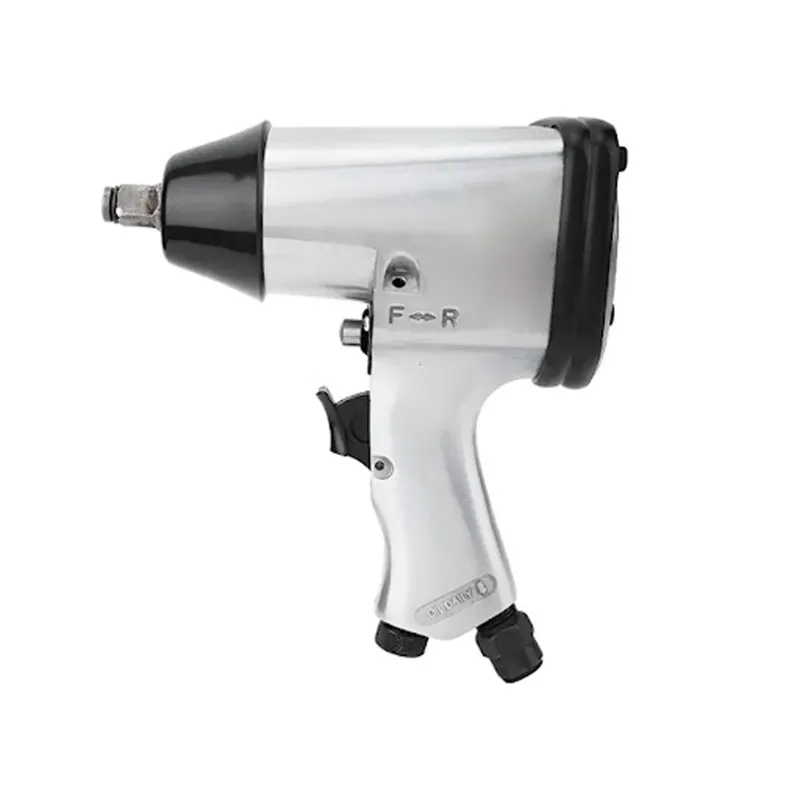

Jadever 1/2 Inch Twin hammer Mechanism Air Impact Wrench, 1600Nm Max. Torque (JDAT1513)
SKU: TI-S1-21551
28 people have bought this recently
Delivery By: Feb 10 - Feb 12
MRP : ₹6350 ₹5899
7% OFF!
28 people have bought this recently Delivery By: Feb 10 - Feb 12 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5899 (Including GST)
MRP : ₹6350
7% OFF!
Get Extra ₹88 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
1/2 inch Air Impact Wrench
7800 RPM Speed
1600 Nm Torque
6.3 Bar Working Pressure
Country of origin: Taiwan, Province of China
Specifications
- Brand: Jadever
- Weight (Approx.) : 2.7 kg
- No-Load Speed : 7800 rpm
- Square Drive Size : 0.5
- Air Pressure : 6.3 bar
- Max. Torque : 1600 nm
- Model No. : JDAT1513
- Square Drive : 12.5mm (1/2")
- Mechanism : Twin Hammer Mechanism
- Air Consumption : 142.5L/min (5.0cfm)
- Air Inlet : 1/4"
- Air Hose : 3/8"
- Length : 195mm (7.6")
Description
The Jadever 1/2 Inch Twin Hammer Air Impact Wrench delivers extreme 1600 Nm (1180 ft-lb) maximum torque and 7800 RPM free speed for breaking the toughest industrial fasteners. This heavy-duty pneumatic tool weighs 2.7 kg, operates at 6.3 bar (90 PSI) with 5 CFM air consumption, 1/4-inch air inlet, and 3/8-inch hose, handling large bolts in demanding environments. Compact 195mm length with robust twin hammer mechanism ensures superior durability for professional use.
Features
:- 1/2-inch square drive twin hammer with 1600 Nm torque and 7800 RPM no-load speed.
- Lightweight 2.7 kg construction, 195mm length for maneuverability.
- 6.3 bar pressure, 142.5 L/min (5 CFM consumption, 1/4-inch inlet, 3/8-inch hose.
- Durable design for heavy industrial applications.
- High bolt capacity for large fasteners and structural work.
Applications
:- Heavy truck and earthmoving equipment maintenance.
- Industrial machinery assembly and large bolt removal.
- Construction site structural steel and frame bolting.
- Shipyard and heavy fabrication tasks.
- Mining equipment and power plant servicing.
Usage
:- Connect to 6.3 bar lubricated air via 3/8-inch hose and 1/4-inch inlet.
- Secure heavy-duty 1/2-inch impact socket with retainer.
- Use short controlled bursts on maximum torque fasteners; toggle reverse carefully.
- Maintain firm perpendicular grip; release throttle after breakaway.
- Lubricate daily, inspect anvil/hammer case, store dry.
