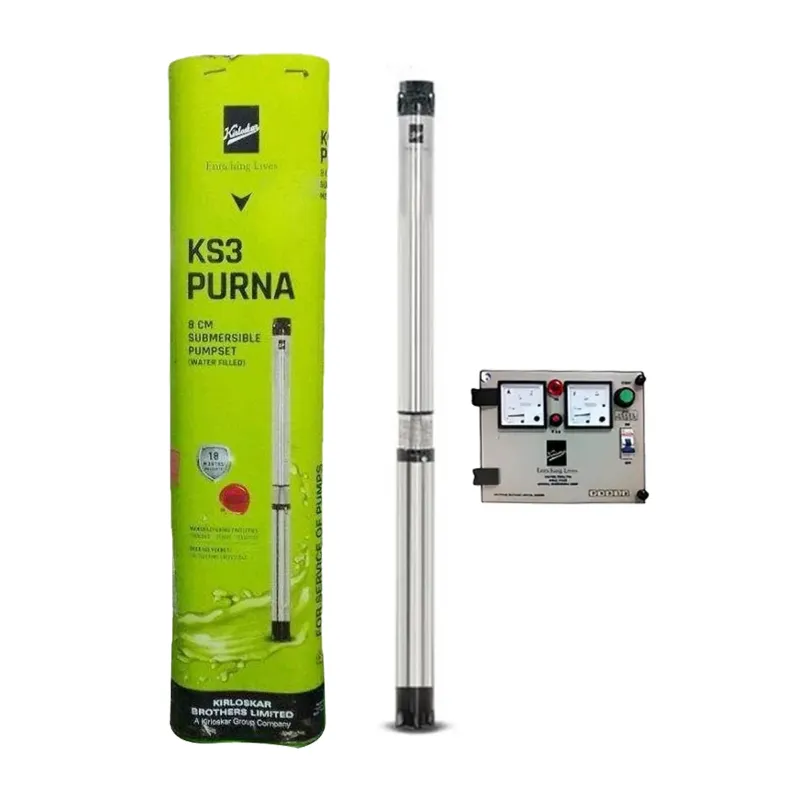

Kirloskar (KS3 PURNA 60-1312) 1.25 HP Submersible Pump With Control Panel
95 LPM Max. Discharge Rate
52M Max. Head Range
8 Cm(3 inch) Boring Size
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar
Kirloskar 1.25HP 12 Stage 8 Cm 1Ph Water Filled Submersible Pump With CP, 170ft Head -1 Year Warranty(KS3 PURNA 60-1312)
SKU : TI-K1-19060
MRP : ₹23100
₹15900
31% OFF!
-
1
+
9778 people have viewed this recently
Delivery By: Jun 19 - Jun 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 1.25 hp
- Weight (Approx.) : 17 kg
- Flow Rate : 95 lpm
- Head : 52 meter
- Model No. : KS3 PURNA 60-1312
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- With Control Panel : Yes
- Power Source : Corded Electric
- Wattage : 0.93 kW
- Power Supply : 220V, 50 Hz, AC Supply
- Electricity Connection : Single Phase
- Cooling Type : Water Filled
- Current Rating : 9.7 Amp
- Boring Size : 3 Inch (8 Cm)
- Max. Head : 52 Meter (170 Feet)
- Max. Discharge Rate : 95 LPM (5700 LPH)
- Outlet Size : 32 mm
- No. of Stages : 12
- Winding Material : Copper
Material Of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Description
This Kirloskar KS3 PURNA Series borewell submersible pump is consists of a motor at the bottom and pumps on the top. The pump is submerged in water, eliminating the need for priming as the water pressure itself moves the water into the pump.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage.
- Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Longer And Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs With 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Accessories
:- Control Panel
Applications
:- Domestic and community water supply
- Rural water supply
- Gardening and small farm irrigation
- Construction site
- Water supplies for high rise building
Warranty :
- One year on site Warranty
