Brand: IDEAL

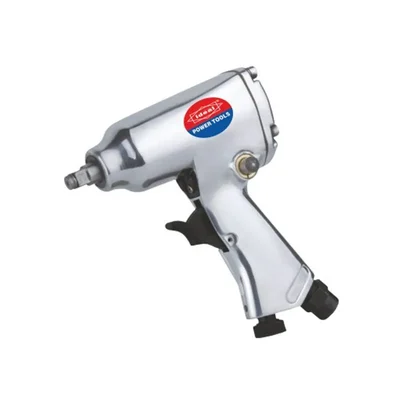

Ideal 1/4 inch Air Impact Wrench 10000 RPM No Load Speed (ID AW110)
SKU: TI-I1-13015
5 people have bought this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹4300 ₹2739
36% OFF!
5 people have bought this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹2739 (Including GST)
MRP : ₹4300
36% OFF!
Get Extra ₹41 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Ideal 1/4 inch Air Impact Wrench
10000 RPM No Load Speed
Country of origin: China
Specifications
- Brand: IDEAL
- Weight (Approx.) : 1.2 kg
- No-Load Speed : 10000 rpm
- Square Drive Size : 0.39
- Air Pressure : 6.3 bar
- Max. Torque : 102 nm
- Model No. : ID AW110
- Air Consumption :4CFM @ 90PSI
- Air Inlet Valve :1/4 Inch (0.63 cm)
- Air Exhaust : Front End
Description
The Ideal ID AW110 is a compact 1/4-inch air impact wrench designed for precision fastening tasks, boasting an ultra-high 10000 RPM no-load speed for rapid operation in tight spaces. This lightweight pneumatic tool delivers up to 102 Nm maximum torque, making it suitable for smaller bolts and nuts in professional and DIY settings. With durable construction and ergonomic features, it ensures reliable performance with minimal user fatigue.
Features
:- High-speed 10000 RPM with 102 Nm (75 ft-lb) torque and 10 mm square drive for fine control on small fasteners.
- Lightweight design at approx. 1.2 kg, die-cast aluminum housing, and 1/4-inch air inlet for easy handling.
- Operates at 6.3 bar (90 PSI) pressure with low air consumption (around 3-4 CFM) for efficient compressor use.
- Reversible rotation, front exhaust, rubber grip handle, and friction ring anvil for quick socket changes.
- Low-vibration mechanism ideal for extended use; includes ergonomic trigger for safety and precision.
Applications
:- Automotive : Small engine components, interior trim, and brake caliper bolts.
- Electronics and assembly : Precision manufacturing, circuit board fixtures, and small machinery.
- Workshop maintenance : HVAC fittings, plumbing nuts, and tool repairs.
- DIY and hobby : Furniture assembly, bike repairs, and model building.
- General MRO : Food processing equipment, pumps, and light industrial bolting.
Usage
:- Connect to a clean, lubricated 6.3 bar air supply via 1/4-inch hose and fitting; add 1-2 drops of tool oil daily.
- Select appropriate 1/4-inch socket (up to 10 mm bolts) and secure on the anvil retainer.
- Adjust direction for forward/reverse, then engage trigger in short bursts to apply torque without stripping.
- Wear PPE; use in well-ventilated areas; avoid continuous run to prevent overheating.
- Blow out moisture post-use and store dry; pair with extensions for confined spaces.
