Brand: Generic ( Made in India )

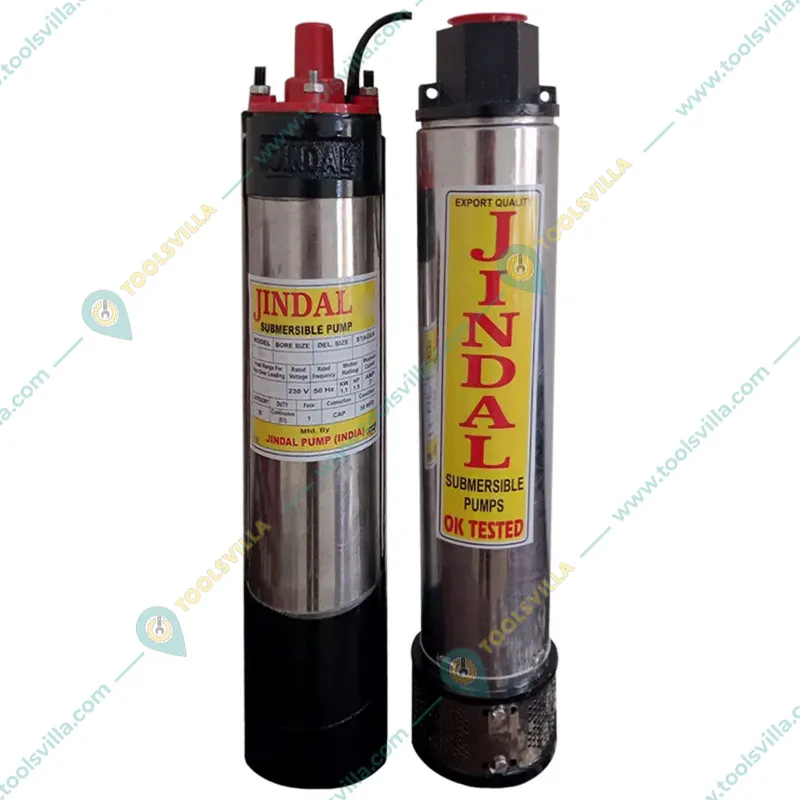

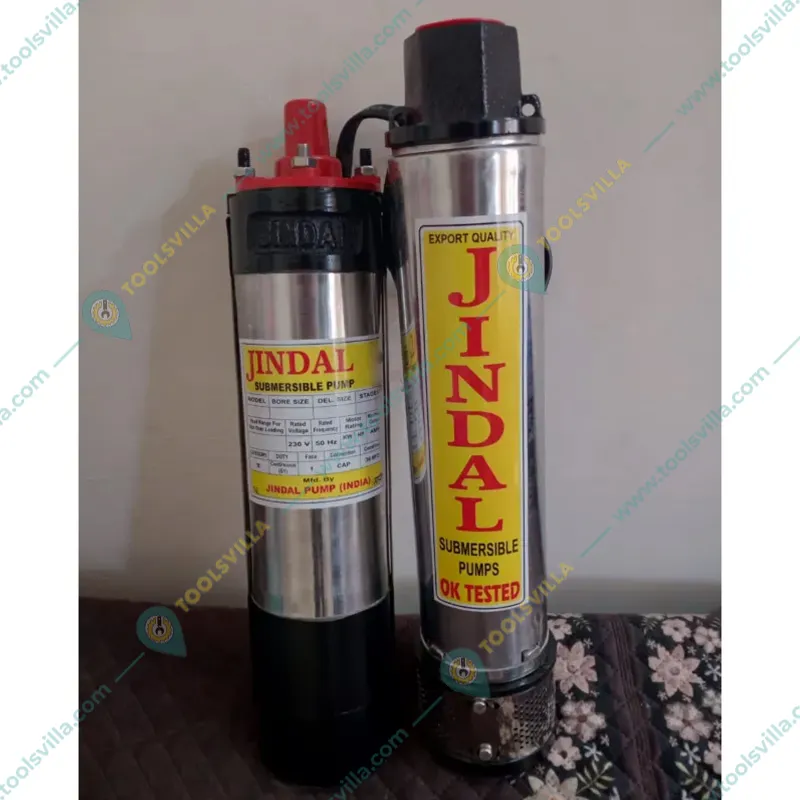

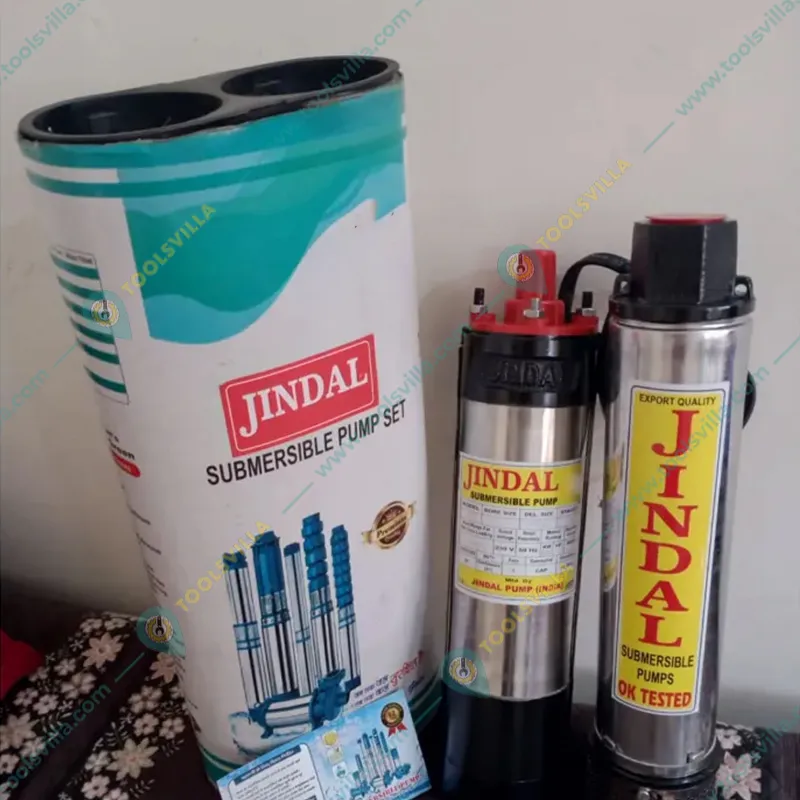

Jindal 1.5Hp 12 Stage 4 inch(V4) Single Phase Oil Cooled Borewell Submersible Pump with Control Panel - 1 Year Warranty
SKU: TI-J1-35577
Delivery By: Jun 17 - Jun 19
MRP : ₹7400 ₹5900
20% OFF!
Delivery By: Jun 17 - Jun 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5900 (Including GST)
MRP : ₹7400
20% OFF!
Get Extra ₹89 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Jindal 1.5 Hp 12 Stage 1Ph Borewell Submersible Pump with Control Panel
Aluminium Winding
4 inch(V4) Bore Size, 70m Head
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Power : 1.5 hp
- Weight (Approx.) : 15.4 kg
- Flow Rate : 92 lpm
- Head : 70 meter
- Product Name : Borewell Submersible Pump
- Power : 1.1 kW
- No of Stages : 12 Stage
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt, 50 Hz
- Bore Size : 4 inch, V4 (100 mm)
- Head Range for Non Over Loading : 229 Feet (70 Meter)
- Delivery Pipe Outer Size : 38mm
- Delivery Pipe Inner Size : 32mm
- Cooling Type : Oil Cooled
- Full Load Current : 7 Amp.
- Winding Material : Aluminium
- Category : B
- Duty : Continuous (S1)
- Face : 1
- Connection : CAP
- Condition : 50 MFD
Material of Construction :
- Motor Body Material : SS Pipe
- Motor Shaft Material : MS Steel
- Pump Housing Material : SS Pipe
- Impeller Material : Kora 4 Plastic
- Pump Shaft Material : MS Steel
Description
The Jindal 1.5Hp 12 Stage Submersible Pump is a high-performance pump designed for efficient water extraction from borewells. With a power rating of 1.5 horsepower, this pump is suitable for various applications, including agricultural irrigation, domestic water supply, and industrial use. The single phase motor allows for easy installation in residential areas where three phase power may not be available. The motor maintains cool while operating because of its oil-cooled technology.
Accessories

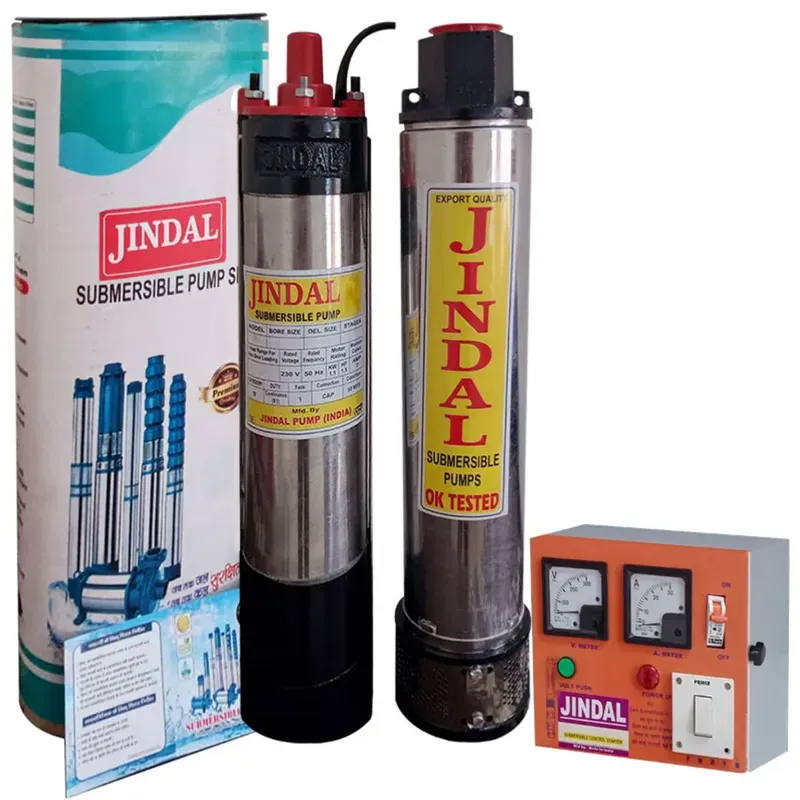

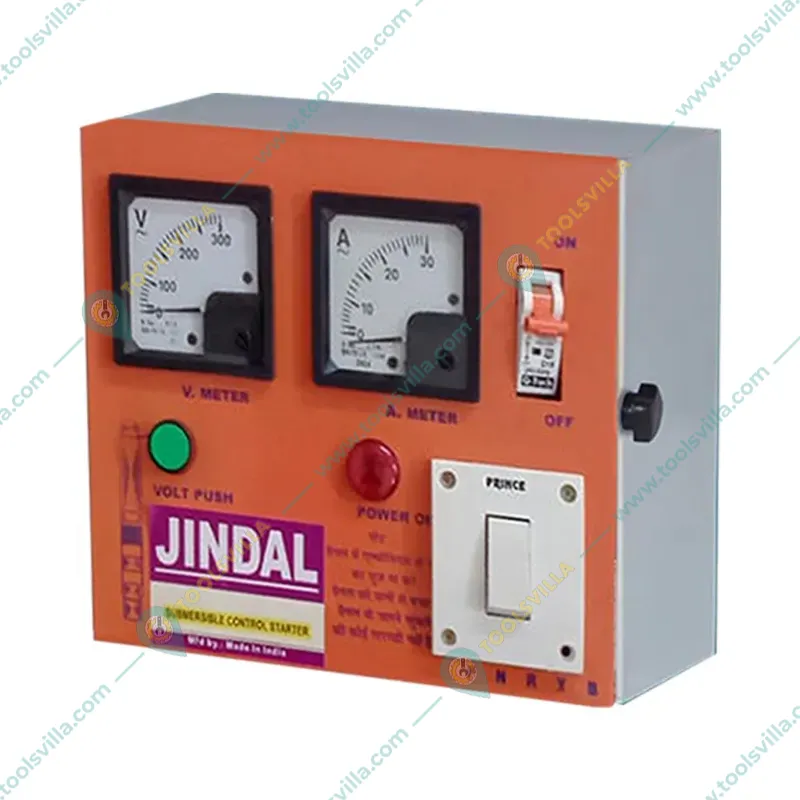

:- Control Panel
Applications
:- Agricultural irrigation systems.
- Domestic use in households requiring reliable water delivery from borewells.
- Industrial applications that necessitate efficient pumping solutions.
WARRANTY :
- 1 Year Warranty on Manufacturing Defects.
