Brand: Crompton

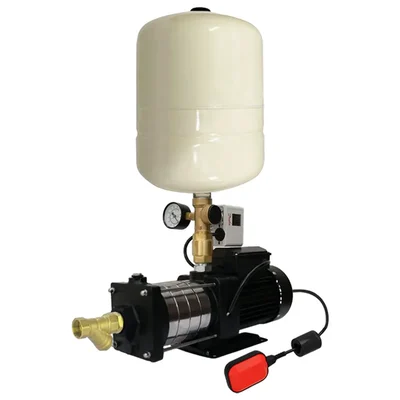

Crompton 1.5 Hp Single Phase Booster Pump With 24L Tank For 6 Bathrooms, SS Impeller (CFCHM6E1.5B-V24) - 1 Year Warranty
SKU: TI-C1-19811
MRP : ₹36000
Offer Price : ₹28990 (Including GST)
Get extra ₹435 Discount (On Checkout)
Delivery By: Dec 15 - Dec 17
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crompton 1.5 Hp 1Ph Water Pressure Booster Pump, 32X25 mm
50m Max. Head, 132 LPM Max. Discharge
Accessories are included including 24L Tank
1 Year Warranty
Country of origin: India
Description
A single-phase booster pump with tank is a type of water pressure booster system designed to increase water pressure and flow rate in homes and small businesses. It ensures a steady flow of water by eliminating fluctuations. Water enters the booster pump from the input and exits through the outlet thanks to the impeller. The impeller is rotated by the motor.
Features
:- Automatic Operation : As per water requirement, pump automatically starts when pressure level drops below set pressure.
- Noiseless Operation : Pump noise is less than 60db.
- Brass Strainer : High quality Y-strainer provided to avoid foreign particle entry.
- Less Power Consumption : High operating efficiency results in high flow rate and low electricity bill.
- Dry Run Protection : Provided by using float switch.
- Constant Pressure Application : Gives constant pressure at all taps.
Specification
:- Product Type: Power - 1.5HP
- Brand: Crompton
- Model No. : CFCHM6E1.5B-V24
- Product Type : Water Pressure Booster Pump
- Brand : Crompton
- Power : 1.5 Hp (1.1 kW)
- Electricity Connection : Single Phase
- Pipe Size (Suction X Delivery) : 32 X 25 mm
- Tank Size : 24 Liter
- Head Range : 10 to 50 Meter (33 to 164 Feet)
- Discharge Range : 132 to 31 LPM (7920 to 1860 LPH)
- Recommended Pressure Setting : 2.5 to 4.5 Bar
- No. of Bathrooms Recommended : 6 Bathrooms
- Weight : 25 Kg (Approx.)
Material Of Construction :
- Impeller : Stainless Steel- Grade SS304
- Diffuser Bowl : Stainless Steel- Grade SS304
- Motor Body Material : Aluminium Extruded- Grade HE9
- Shaft : Stainless Steel- Grade SS431
- Winding Material : Copper Winding
- Delivery Casing : Cast Iron-IS210 Grade FG 200
- Y Strainer : Brass
- Fan : NYLON 6
- Fan Cover : PP GF 30%
Accessories
:- 24 Liter Pressure Tank
- 5 Way Connector
- Pressure Gauge
- Non Return Valve
- Y Strainer
- Float Switch
- Danfoss Pressure Switch
Applications
:- Domestic pressure boosting applications in bungalows, apartments, hotels, etc.
- For constant pressure application in industries.
WARRANTY :
- 1 Year Warranty
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 64 cm X 57 cm X 40 cm
Package Weight
:
25.42 Kg
