Brand : Kirloskar
Kirloskar 1.5 HP Single Phase Jet Pump, 30m Max. Depth To Low Water Level, 1940 LPH (KJ-15V / 4T6) - 1 Year Warranty
SKU : TI-KK-13258
MRP : ₹26320
₹18800
29% OFF!
-
1
+
2363 people have viewed this recently
Get Extra ₹282 OFF on Prepaid Orders
Delivery By: Jul 18 - Jul 20
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

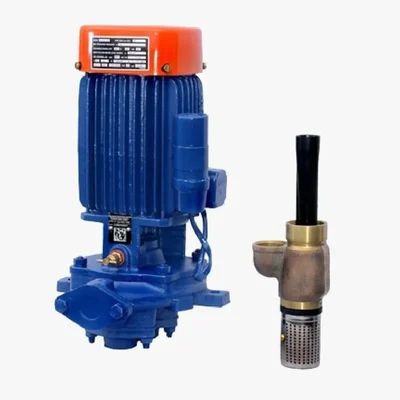

Kirloskar(KJ-15V / 4T6) 1.5 HP (1.10 kW) Jet Pump
30M Max. Depth To Low Water Level
1940 LPH Max. Discharge Rate
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 1.5 hp
  • Weight (Approx.) : 37 kg
  • Flow Rate : 32 lpm
  • Head : 30 meter
  • Model No : KJ-15V / 4T6
  • Product Type : Jet Pump
  • Brand : Kirloskar
  • Power Rating : 1.1 kW
  • Rated Voltage : 210 Volt, 50Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Jet Unit : 4T6
  • Minimum Well Size : 100 mm
  • Minimum Operating Pressure : 23 Meters
  • Del. Pipe Size : 32 mm
  • Press. Pipe Size : 32 mm
  • Dis. Pipe Size : 25 mm
  • Depth To Low Water Level : 9 to 30 Meter (29 to 98 Feet)
  • Discharge Range : 1940 to 480 LPH (32 to 8 LPM)
  • Winding Material : Copper
  • Insulation : B Class
  • Protection : IP 44

Material Of Construction :
  • Impeller : Cast Iron
  • Delivery Casing : Cast Iron
  • Motor Body : Cast Iron
  • Pump Shaft : Carbon Steel
  • Jet Unit : Bronze

Description
A jet pump uses a high-velocity stream of motive fluid (liquid, gas, or steam) passed through a nozzle to create a low-pressure area, drawing in and accelerating a secondary fluid. This combined flow then exits at a higher pressure, effectively moving liquids or gases without moving parts .

Features

 :
  • Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
  • Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication required through life cycle and low noise level.
  • CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
  • High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.

Applications

 :
  • Domestic water supply
  • Water supply to over head tanks in bungalows
  • Construction site
  • Gardens / Fountains
  • Lawn sprinklers

Warranty :
  • 1 Year Warranty As Per Kirloskar Brothers Limited Policy.
