Brand : GRITSON

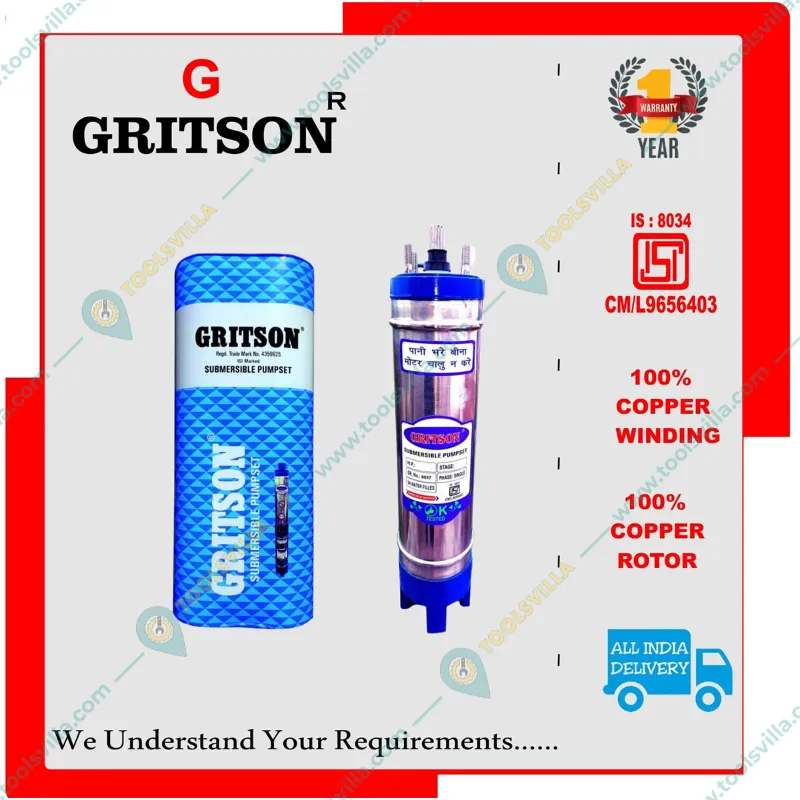

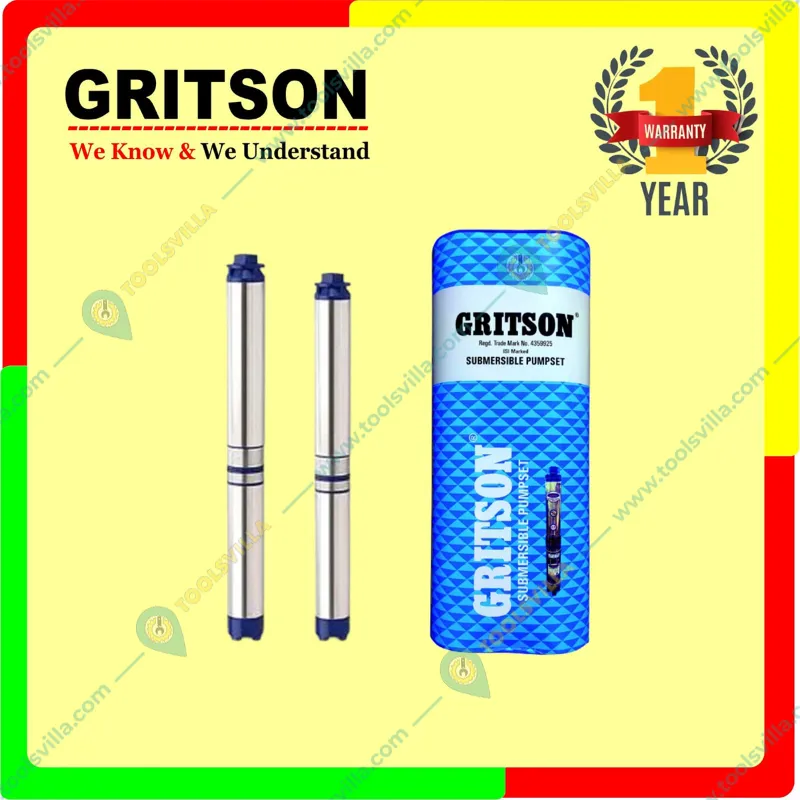

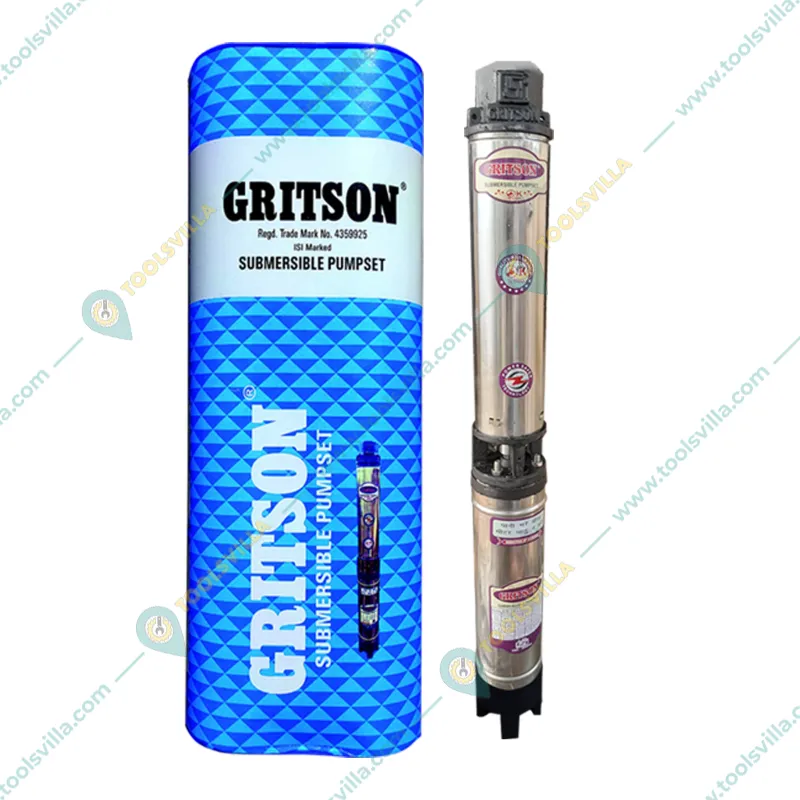

Gritson 1.5 HP 6 Stage(4 inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories 1 Year Warranty
SKU : TI-G1-12836
MRP : ₹16600
₹11669
30% OFF!
-
1
+
919 people have viewed this recently
Get Extra ₹175 OFF on Prepaid Orders
Delivery By: Nov 2 - Nov 4
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

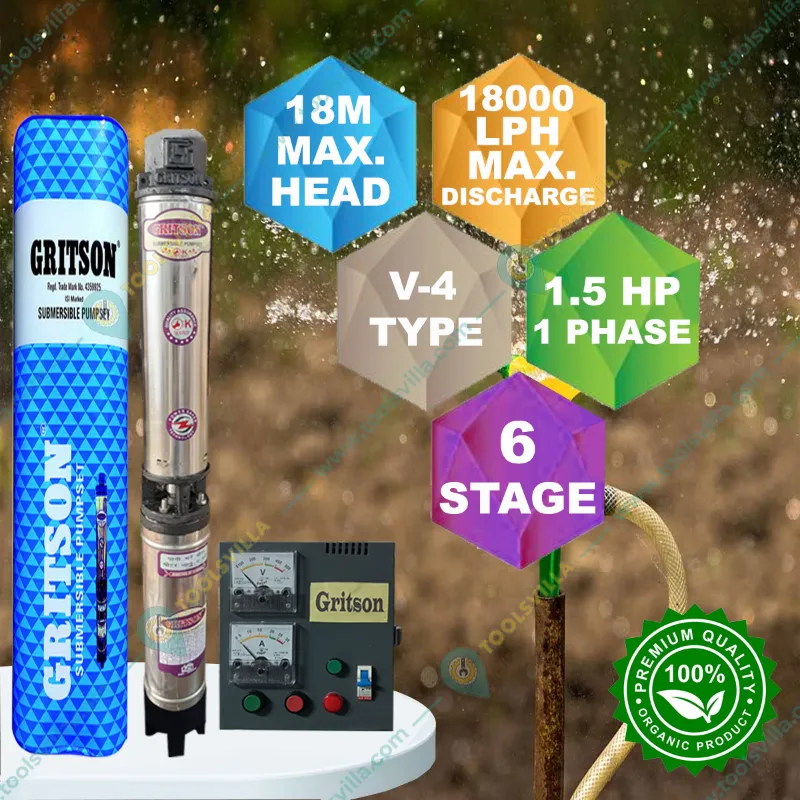

GRITSON 1.5 HP 6 Stage Submersible Pump With CP & Other Accessories
18 meter Max. Head
18000 LPH Max. Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: GRITSON
  • Power : 1.5 hp
  • Weight (Approx.) : 23.50 kg
  • Flow Rate : 300 lpm
  • Head : 18 meter
  • Product Type : Submersible Pump
  • Brand : GRITSON
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
  • Current Rating : 8 Amp
  • No Of Stages : 6
  • Cora : 18
  • Type : V-4
  • Delivery : 2 Inch
  • Max. Head : 18 Meter (60 Feet)
  • Max. Discharge Rate : 18000 LPH (300 LPM)
  • Borewell Size : 100 mm (4 Inch)
  • Outlet Pipe Size : 1.5 Inch (38.1 mm)
  • Cooling Type : Water Filled

Material Of Construction :
  • Thrust Bearing : Carbon
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • Non Return Valve (NRV) : Cast Iron
Description
A water-cooled submersible pump is an electric pump designed to operate fully submerged in the fluid it's pumping, utilizing the surrounding water to dissipate heat from its motor. This design ensures efficient cooling and allows for continuous operation in applications like dewatering, irrigation, and water supply.

Features

 :
  • Compact designed, High Operating Efficiency.
  • The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
  • Higher output, lesser power consumption
  • ISI Certified.

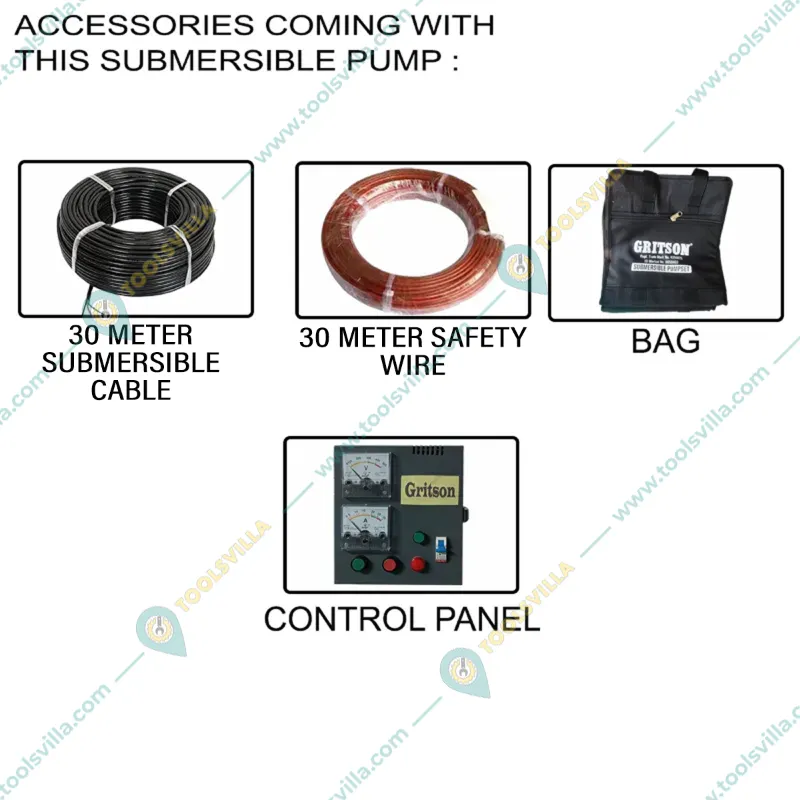

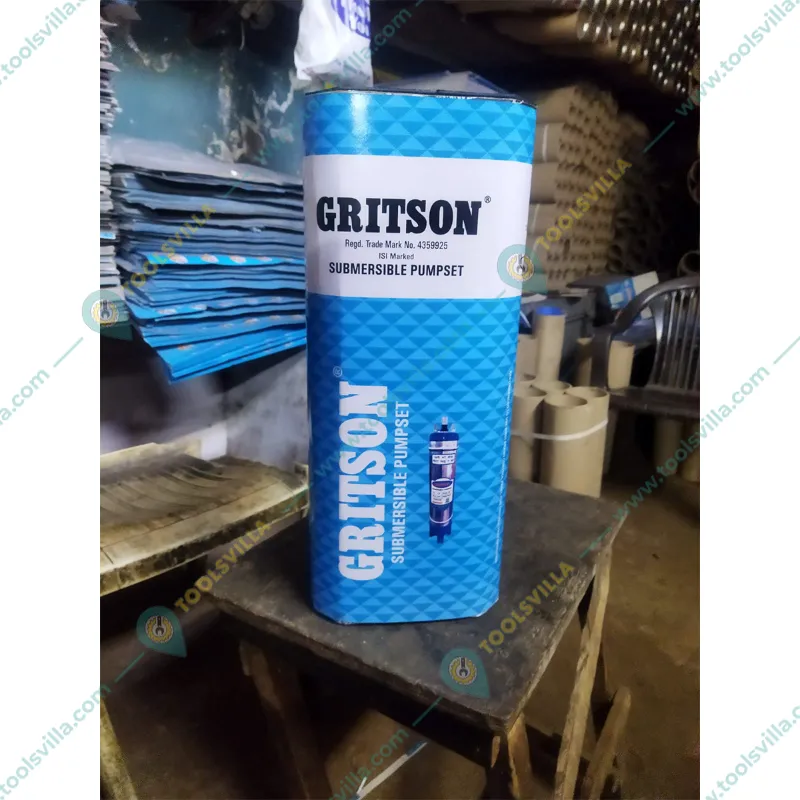

Accessories

 :
  • Submersible Pump

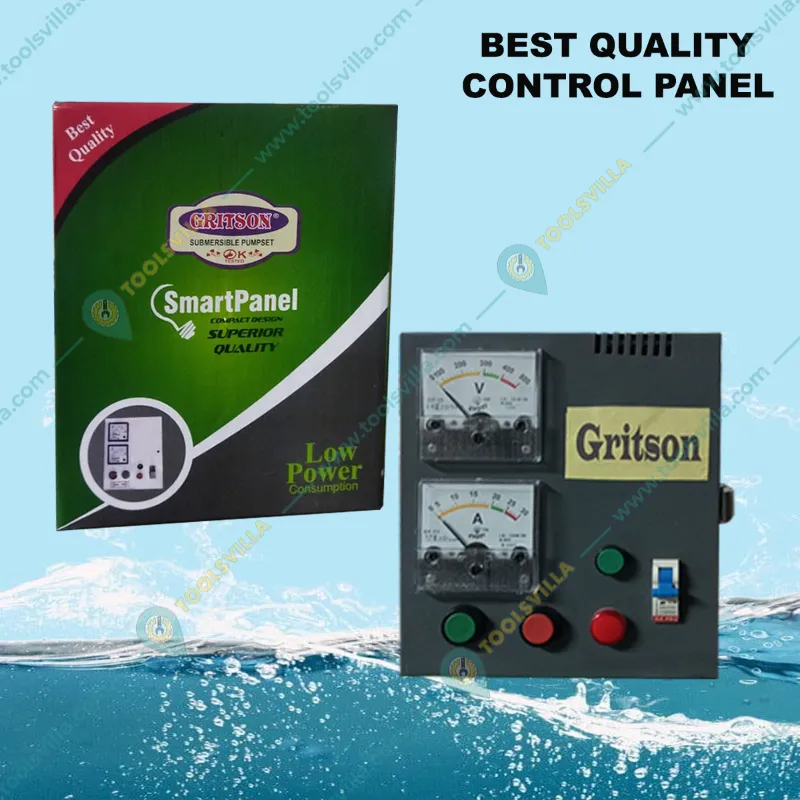

  • Control Panel
  • 30 Meter Safety Wire
  • 30 Meter Submersible Cable
  • Bag

Applications

 :
  • Domestic and community water supply.
  • Rural water supply
  • Gardening and small farm irrigation.
  • Construction site.
  • Water supplies for high rise building.

Warranty :
  • 1 Year Warranty On Manufacturing Defects Only

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
