Brand : GRITSON

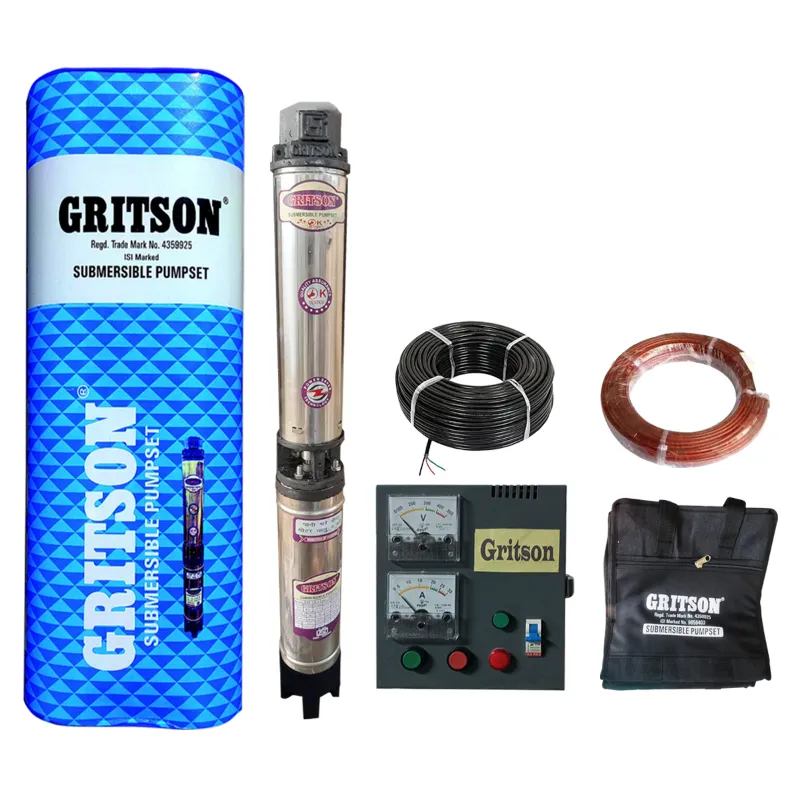

Gritson 1.5HP 10 Stage(4 inch)V-4 1Ph Water Cooled Submersible Pump With CP & Accessories, 132ft Head - 1 Year Warranty
SKU : TI-G1-12837
MRP : ₹14300
₹10159
29% OFF!
-
1
+
1781 people have viewed this recently
Get Extra ₹152 OFF on Prepaid Orders
Delivery By: Nov 23 - Nov 25
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
GRITSON 1.5 HP 10 Stage Submersible Pump With CP & Other Accessories
40M Max. Head
7000 LPH Max. Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: GRITSON
  • Power : 1.5 hp
  • Weight (Approx.) : 17 kg
  • Flow Rate : 117 lpm
  • Head : 40 meter
  • Product Type : Submersible Pump
  • Brand : GRITSON
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
  • Current Rating : 8 Amp
  • No Of Stages : 10
  • Cora : 7
  • Type : V-4
  • Delivery : 1.5 Inch (38 mm)
  • Max. Head : 40 Meter (132 Feet)
  • Max. Discharge Rate : 7000 LPH (117 LPM)
  • Borewell Size : 100 mm (4 Inch)
  • Outlet Pipe Size : 1.5 Inch (38 mm)
  • Cooling Type : Water Filled

Material Of Construction :
  • Thrust Bearing : Carbon
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • Non Return Valve (NRV) : Cast Iron

Description
A water-cooled submersible pump is an electric pump designed to operate fully submerged in the fluid it's pumping, utilizing the surrounding water to dissipate heat from its motor. This design ensures efficient cooling and allows for continuous operation in applications like dewatering, irrigation, and water supply.

Features

 :
  • Compact designed, High Operating Efficiency.
  • The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
  • Higher output, lesser power consumption
  • ISI Certified.

Accessories

 :
  • Submersible Pump
  • Control Panel
  • 30M Safety Wire
  • 30M Submersible Cable
  • Bag

Applications

 :
  • Domestic and community water supply.
  • Rural water supply
  • Gardening and small farm irrigation.
  • Construction site.
  • Water supplies for high rise building.

Warranty :
  • 1 Year Warranty On Manufacturing Defects Only

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
