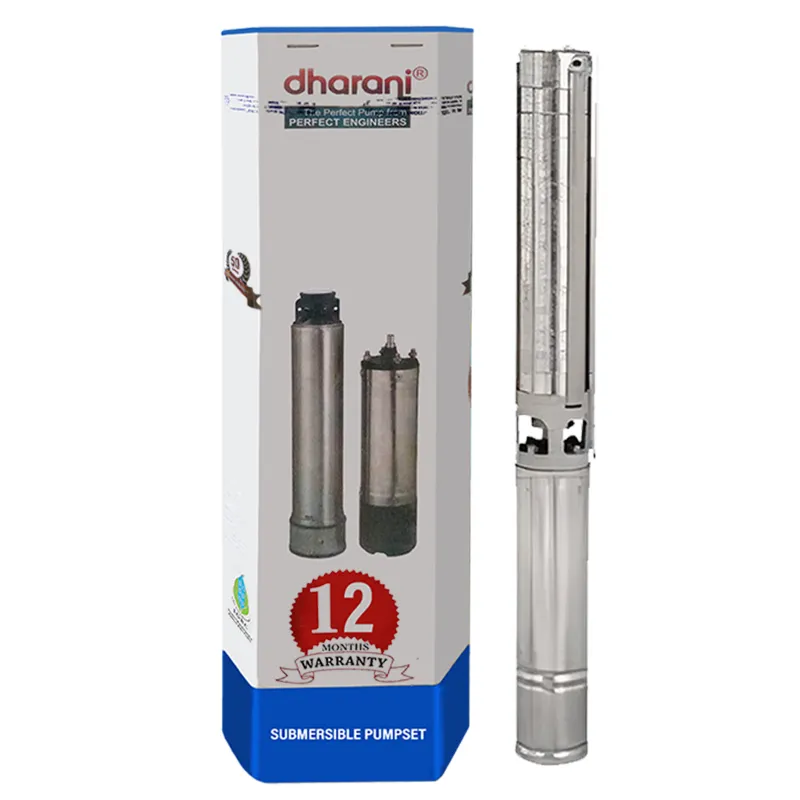

Dharani 1.5Hp 12 Stage Single Phase Borewell Submersible Pump
68m Max. Head, 120 LPM Max. Discharge
Oil Cooled Technology
1 Year Warranty
Country of origin: India
Description
The Dharani 1.5 Hp Single Phase 12 Stage Oil Filled V4 Borewell Submersible Pump is a high-end product designed to satisfy the rigorous requirements of water distribution and extraction in commercial, residential, and agricultural settings. This sophisticated pump set offers outstanding performance, durability, and efficiency by fusing state-of-the-art materials with innovative technology. The V4 Pump is perfect for deep well and borewell applications because of its submersible nature, which enables it to function completely immersed in water. Priming is no longer necessary thanks to this design, which guarantees dependable, continuous performance even under trying circumstances. Whether drawing water from boreholes or deep subterranean sources, with its strong and energy-efficient motor, the Dharani pump guarantees high flow rates and superior pressure delivery, making it appropriate for a variety of applications.
Features
:
This pump delivers efficient water lifting capabilities suitable for various applications.
The 12-stage design enhances the pump’s ability to lift water from deep borewells, making it ideal for agricultural and domestic use.
The submersible pump is oil-filled, ensuring effective cooling and lubrication of the motor during operation.
High-quality materials to withstand harsh conditions and ensure longevity in performance.
The design allows for straightforward installation in borewells without the need for complex setups.
Optimized for lower energy consumption while maintaining high performance levels, contributing to cost savings on electricity bills.
Specification
:
Model No. : 4DOCPK4E/1.50-12(32)
Product Type : Borewell Submersible Pump
Brand : Dharani
Power : 1.5 Hp (1.1 kW)
Rated Voltage : 220 Volt, 50 Hz
Electricity Connection : Single Phase
No. of Stages : 12 Stage
Borewell Size : 4 inch (100 mm)
Borewell Type : V4
Max. Head : 68 Meter (223 Feet)
Max. Discharge : 120 LPM (7200 LPH)
Motor Cooling Type : Oil Filled
Outlet Size : 32 mm (1¼")
Speed : 3000 RPM
Motor Winding : Copper
Weight : 13.25 Kg (Approx.)
Material of Construction :
Housing Material : Cast Iron
Impeller Material : Plastic
Diffuser Material : Plastic
Applications
:
Household and Community Water Supply Systems
Water Supply to Tall Buildings
Irrigation for Gardens and Small Farms
Water Provision at Construction Sites
Groundwater Supply for Municipal Water Treatment Plants
Warranty :
1 Year Warranty
Warranty Terms :
Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
