Brand : Gemston

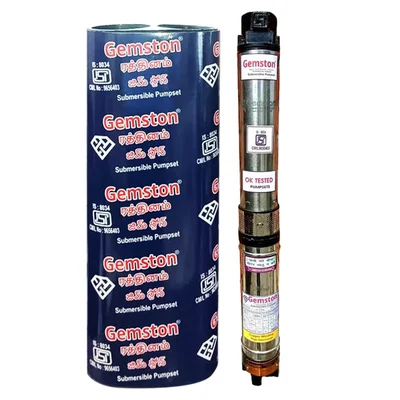

Gemston 1.5 HP 12 Stage(4 inch) V-4 Single Phase Water Filled Submersible Pump, 48M Max. Head, 5000 LPH (1 Year Warranty)
SKU : TI-G1-16820
MRP : ₹8000
₹7100
11% OFF!
-
1
+
Get Extra ₹107 OFF on Prepaid Orders
Delivery By: Jul 16 - Jul 18
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
GEMSTON 1.5 HP 12 Stage Submersible Pump
48M Max. Head
5000 LPH Max. Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: Gemston
  • Power : 1.5 hp
  • Weight (Approx.) : 18 kg
  • Flow Rate : 83 lpm
  • Head : 48 meter
  • Product Type : Submersible Pump
  • Brand : GEMSTON
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
  • Current Rating : 8 Amp
  • No Of Stages : 12
  • Cora : 5
  • Type : V-4
  • Delivery : 1.25 Inch (31.75 mm)
  • Max. Head : 48 Meter (158 Feet)
  • Max. Discharge Rate : 5000 LPH (83 LPM)
  • Borewell Size : 100 mm (4 Inch)
  • Outlet Pipe Size : 1.5 Inch (38.1 mm)
  • Winding Material : 100% Copper
  • Cooling Type : Water Filled

Material Of Construction :
  • Thrust Bearing : Carbon
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • Non Return Valve (NRV) : Cast Iron
Description
A Water Cooled Submersible Pump is fully submerged in the fluid it pumps, and its motor is cooled by the surrounding water, eliminating the need for external cooling. This design makes it highly efficient, quiet, and prevents overheating, ideal for deep wells, boreholes, and other applications where the pump is constantly immersed.

Features

 :
  • Compact designed, High Operating Efficiency.
  • The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
  • Higher output, lesser power consumption
  • ISI Certified.
  • IS : 8034
  • CM/L : 9656403

Applications

 :
  • Domestic and community water supply.
  • Rural water supply
  • Gardening and small farm irrigation.
  • Construction site.
  • Water supplies for high rise building.

Warranty :
  • 1 Year Replacement Warranty On Manufacturing Defects Only

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
