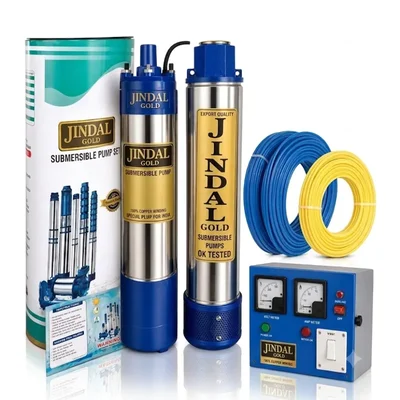

Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 240ft Head, 6000 LPH

Brand: Generic ( Made in India )

Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 240ft Head, 6000 LPH

Name: Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 240ft Head, 6000 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-79946
Price: 8399 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-79946

MRP : ₹11400 ₹8399

26% OFF!

Get Extra ₹126 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹8399 (Including GST)

MRP : ₹11400

26% OFF!

Get Extra ₹126 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP 12 Stage V4 Submersible Pump

240ft Max Head, 100 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 17 kg
Flow Rate : 100 lpm
Head : 73 meter

Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 180 to 220 Volt, 50 Hertz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 240 Feet (73 Meter)
Max. Flow/Discharge Rate : 100 LPM (6000 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl
Pump Shaft : SS 410

This water-cooled submersible pump is designed to operate fully submerged, ensuring continuous and efficient operation with higher heat dissipation. Built with a corrosion-resistant stainless steel body, it handles high voltage fluctuations smoothly for domestic, agricultural, and industrial water needs. The pump includes a control panel, a 30-meter submersible cable, and a safety wire for reliable performance out of the box.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption
Includes control panel, 30-meter submersible cable, and safety wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Regularly inspect the control panel, electrical connections, and the 30-meter cable for any signs of wear or damage.
Ensure the pump remains fully submerged in water at all times during operation to prevent accidental dry run damages.
Periodically check the safety wire and piping system to ensure there are no leaks or structural weaknesses.
Monitor incoming power supply to confirm it stays within the 180 to 220 Volt range to maintain electrical efficiency.
Clean the pump exterior and clear the borewell area to prevent debris from clogging the suction mechanism.
