CRI 1.5Hp 14 Stage 4"(V4) 1Phase Water Filled Submersible Pump With CP, 110m Head (GENIE, CRI4F-3/14)

Brand : CRI

CRI 1.5Hp 14 Stage 4"(V4) 1Phase Water Filled Submersible Pump With CP, 110m Head (GENIE, CRI4F-3/14) - 1 Year Warranty

SKU : TB-CR-33626

MRP : ₹27391

₹21399

22% OFF!

Get Extra ₹321 OFF on Prepaid Orders

Delivery By: Jun 20 - Jun 22

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

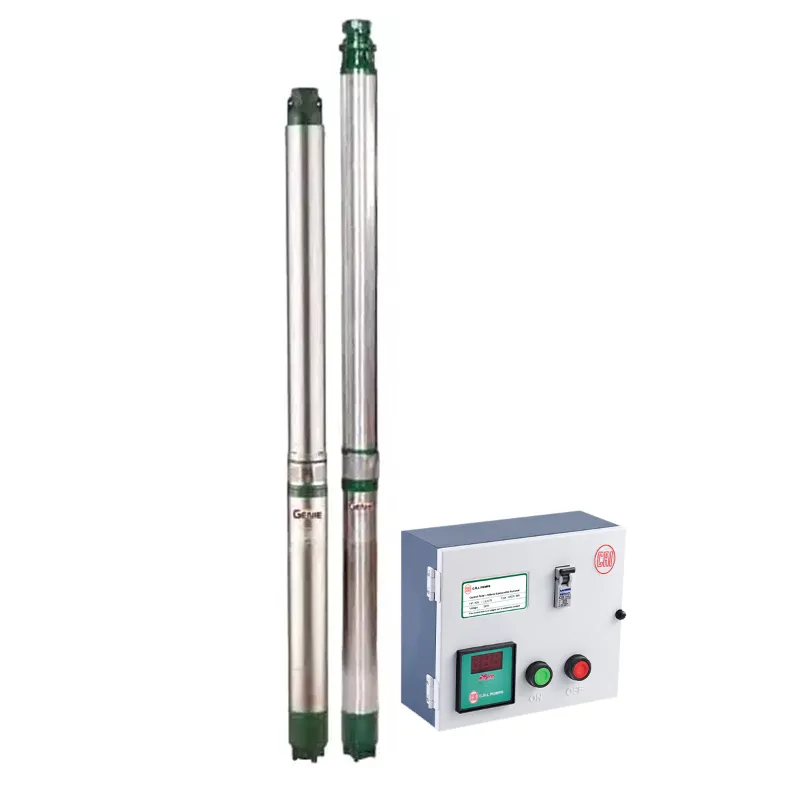

CRI 1.5 Hp 14 Stage Borewell Submersible Pump With Control Panel
Water Cooled Technology
110m Max. Head, 72 LPM Max. Discharge
1 Year Warranty

Country of origin: India

Specification

Brand: CRI
Power : 1.5 hp
Weight (Approx.) : 28 kg
Flow Rate : 72 lpm
Head : 110 meter

Model No. : CRI4F-3/14
Series : GENIE
Wattage : 1.1 kW
Electricity Connection : Single Phase
Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
No. of Stages : 14
Outlet Size : 32 mm
Head Range : 110 to 44 Meter (360 to 144 Feet)
Discharge Range : 0 to 72 LPM (0 to 4320 LPH)
Cooling Type : Water Cooled
Borewell Size : 100 mm (4 inch)
Star Rating : 3 Star
Winding Material : Copper
Speed : 2850 RPM
Degree of Protection : IP 58
Direction of Rotation : Counter Clockwise from Driving End
Minimum Cooling Flow Along the Motor : 0.15m/sec
Type of Duty : S1 (Continuous)
Method of Starting : Capacitor Start Capacitor Run
Maximum Start Per Hour : 20 Times

Description

C.R.I. Genie 4 inch(100 mm) Borewell submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering. All vital components of these pumps are made up of corrosive resistance thermoplastic and with stainless steel shaft.

Accessories

Control Panel

WARRANTY :

1 Year Warranty
