Brand : CRI
CRI 1.5Hp 15 Stage 4"(V4) 1Phase Oil Filled Submersible Pump With CP, 109m Head (ZUNO, CRI4R-3E/15) - 1 Year Warranty
SKU : TB-CR-33634
MRP : ₹22655
₹17699
22% OFF!
-
1
+
4632 people have viewed this recently
Get Extra ₹265 OFF on Prepaid Orders
Delivery By: Nov 12 - Nov 14
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

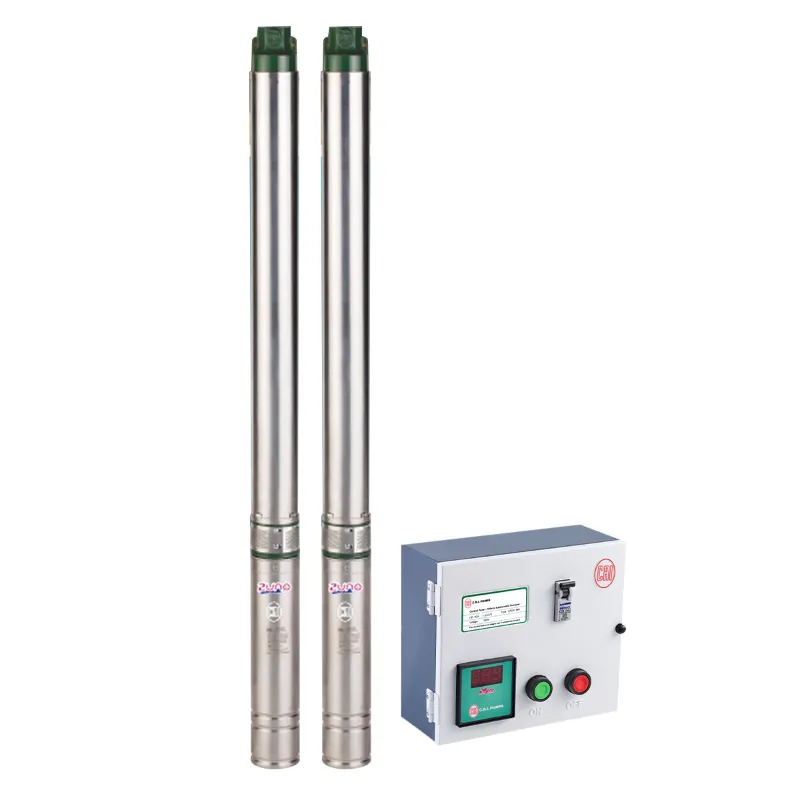

CRI 1.5 Hp 15 Stage Borewell Submersible Pump With Control Panel
Oil Cooled Technology
109m Max. Head, 84 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 1.5 hp
  • Weight (Approx.) : 22 kg
  • Flow Rate : 84 lpm
  • Head : 109 meter
  • Model No. : CRI4R-3E/15
  • Series : ZUNO
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • No. of Stages : 15
  • Outlet Size : 32 mm
  • Head Range : 109 to 38 Meter (357 to 124 Feet)
  • Discharge Range : 0 to 84 LPM (0 to 5040 LPH)
  • Cooling Type : Oil Cooled
  • Borewell Size : 100 mm (4 inch)
  • Star Rating : 5 Star
  • Winding Material : Copper
  • Speed : 2850 RPM
  • Degree of Protection : IP 58
  • Direction of Rotation : Counter Clockwise from Driving End
  • Minimum Cooling Flow Along the Motor : 0.15m/sec
  • Type of Duty : S1 (Continuous)
  • Method of Starting : Capacitor Start Capacitor Run/CSR
  • Maximum Start Per Hour : 20 Times
Description
C.R.I. Zuno 4 inch(100 mm) Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering

Applications

 :
  • Control Panel

WARRANTY :
  • 1 Year Warranty
