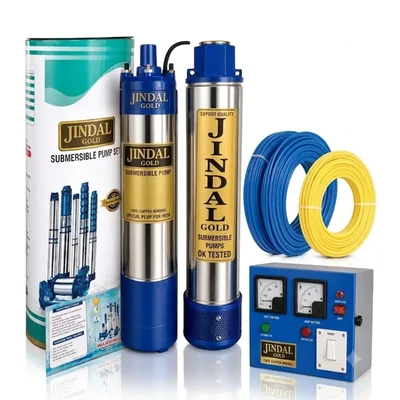

Jindal 1.5 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH, With CP, 30 Meter 50 Submersible Cable, Safety Wire

Brand: Generic ( Made in India )

Jindal 1.5 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH, With CP, 30 Meter 50 Submersible Cable, Safety Wire

Name: Jindal 1.5 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH, With CP, 30 Meter 50 Submersible Cable, Safety Wire
Brand: Generic ( Made in India )
SKU: TI-J1-80112
Price: 8299 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80112

MRP : ₹11300 ₹8299

27% OFF!

Get Extra ₹124 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹8299 (Including GST)

MRP : ₹11300

27% OFF!

Get Extra ₹124 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP V3 Pump

15 Stage 180ft Max Head

70 LPM Max Water Discharge

1 Year Manufacturing Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 16.5 kg
Flow Rate : 70 lpm
Head : 54.86 meter

Power : 1.5 Hp
Weight (Approx.) : 16.5 Kg
Flow Rate : 70 lpm
Head : 54.86 meter
Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 150-240 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 180 Feet (54 Meter)
Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Die Cast
Impeller : PVC
Pump Shaft : Steel

This Jindal 1.5 HP V3 submersible pump is a robust single phase solution designed for deep borewells. It features a water cooled 15 stage design that delivers efficient water discharge up to 180 feet. The complete kit includes a control panel, 50 meter cable, and safety wire for a secure setup.

Features

Corrosion resistant stainless steel body for longer life
Specially designed for low voltage working conditions
High electrical and mechanical efficiency
Higher heat dissipation through water cooled design
Dynamically balanced rotor and rotating parts for uniform clearance
Specially designed thrust bearing to withstand axial thrust loads
Designed to withstand high voltage fluctuations safely
High water delivery efficiency with low power consumption
Complete with control panel, 50 meter cable, and safety wire

Accessories

Control Panel
50 Meter Submersible Cable (2.5 sqmm)
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
