Brand: CRI

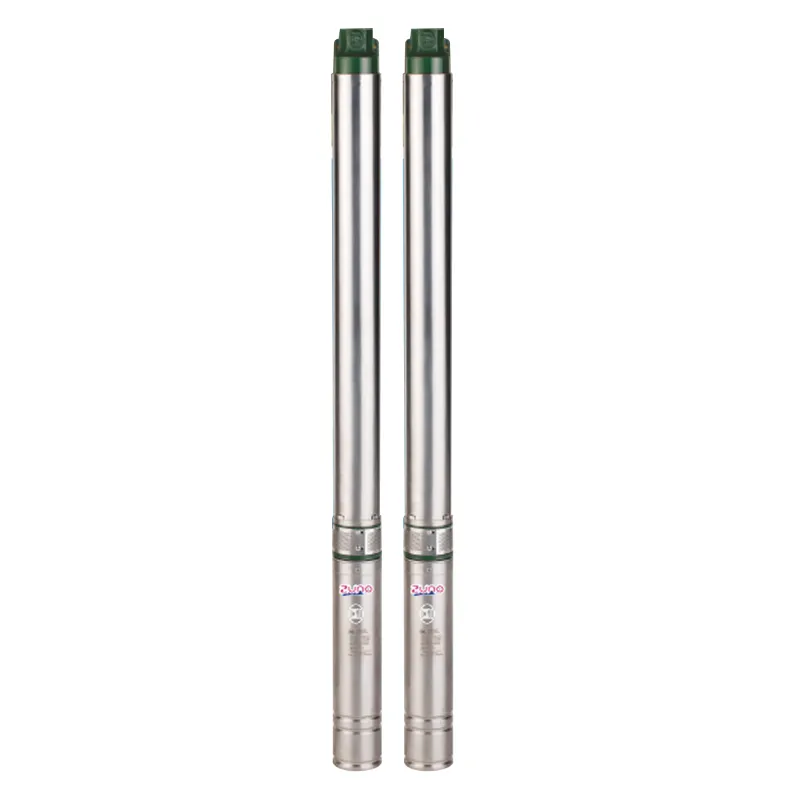

CRI 1.5Hp 15 Stage 4"(V4) 1Phase Oil Filled Submersible Pump, 109m Head (ZUNO, CRI4R-3E/15) - 1 Year Warranty
SKU: TB-CR-33641
1096 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹17500 ₹14299
18% OFF!
1096 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹14299 (Including GST)
MRP : ₹17500
18% OFF!
Get Extra ₹214 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
CRI 1.5 Hp 15 Stage Borewell Submersible Pump
Oil Cooled Technology
109m Max. Head, 84 LPM Max. Discharge
1 Year Warranty
Oil Cooled Technology
109m Max. Head, 84 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: CRI
- Power : 1.5 hp
- Weight (Approx.) : 20 kg
- Flow Rate : 84 lpm
- Head : 109 meter
- Model No. : CRI4R-3E/15
- Series : ZUNO
- Wattage : 1.1 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
- No. of Stages : 15
- Outlet Size : 32 mm
- Head Range : 109 to 38 Meter (357 to 124 Feet)
- Discharge Range : 0 to 84 LPM (0 to 5040 LPH)
- Cooling Type : Oil Cooled
- Borewell Size : 100 mm (4 inch)
- Star Rating : 45Star
- Winding Material : Copper
- Speed : 2850 RPM
- Degree of Protection : IP 58
- Direction of Rotation : Counter Clockwise from Driving End
- Minimum Cooling Flow Along the Motor : 0.15m/sec
- Type of Duty : S1 (Continuous)
- Method of Starting : Capacitor Start Capacitor Run/CSR
- Maximum Start Per Hour : 20 Times
WARRANTY :
- 1 Year Warranty
Description
C.R.I. Zuno 4 inch(100 mm) Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering
