Brand : KBS
KBS 1.5Hp 18 Stage(3") V3 1Ph Water Cooled Submersible Pump With CP, 60m Submersible Cable, Safety Wire- 1 Year Warranty
SKU : TI-K1-26107
MRP : ₹16000
₹10699
33% OFF!
-
1
+
4 people have bought this recently
Get Extra ₹160 OFF on Prepaid Orders
Delivery By: Jul 17 - Jul 19
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 1.5 Hp Single Phase 18 Stage Submersible Pump With Control Panel
180Ft. Max. Head, 70 LPM Max. Flow Rate
3 inch Bore, V3 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: KBS
  • Power : 1.5 hp
  • Weight (Approx.) : 16.5 kg
  • Flow Rate : 70 lpm
  • Head : 54 meter
  • Product Name : Borewell Submersible Pump
  • Wattage : 1.1 kW
  • Supply Voltage : 150-240 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • No of Stages : 18 Stage
  • Pump Type : V3 Type
  • Suitable Bore Size : 3 inch (75 mm)
  • Cora : 3
  • Max. Head Range : 180 Ft. (54 Meter)
  • Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
  • Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
  • Stamping : 200 mm
  • Winding Material : Copper

Material Of Construction :
  • Motor Body : Stainless Steel
  • Impeller Material : PF Bakelite
  • Pump Bowl : PVC
  • Motor Shaft : Steel
  • Thrust Bearing : Carbon Vs Stainless Steel
  • Rotor : Die Cast
Description
The KBS 1.5Hp 18 Stage V3 Single Phase Submersible Pump is a high-performance pumping solution designed for various applications, including agricultural irrigation, water supply, and drainage systems. This pump is engineered to deliver reliable performance with its robust construction and advanced features.

Features

 :
  • Corrosion resistant stainless steel body
  • Specially designed for low voltage working
  • High Electrical and Mechanical efficiency
  • Higher heat dissipation
  • Dynamically balanced rotor and other rotating parts for uniform clearance
  • Specially designed bearing to withstand axial thrust loads
  • Designed for high voltage fluctuation
  • High efficiency, low power consumption.
  • Thrush Bearing

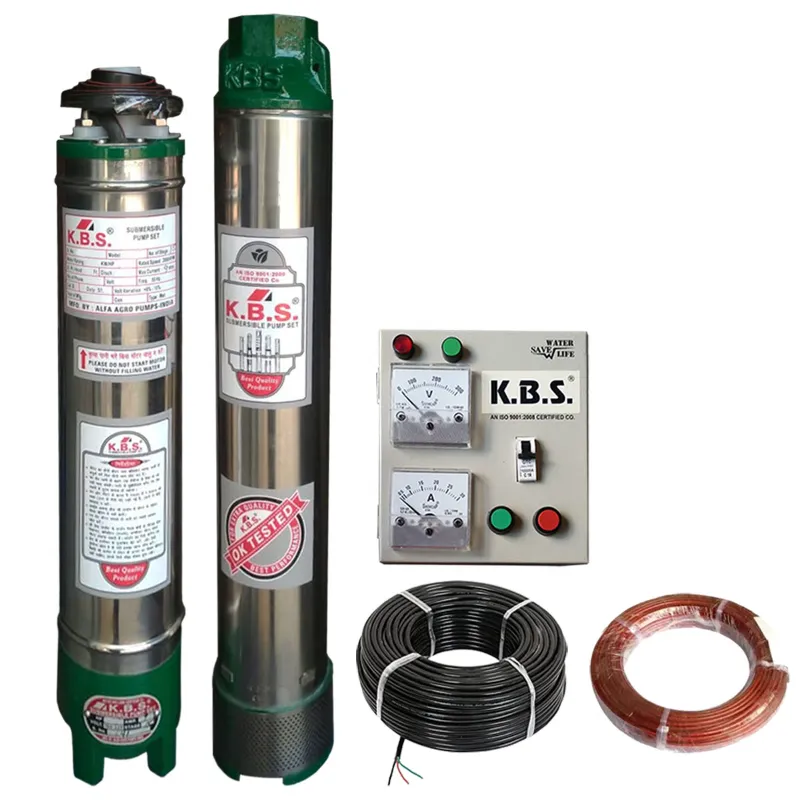

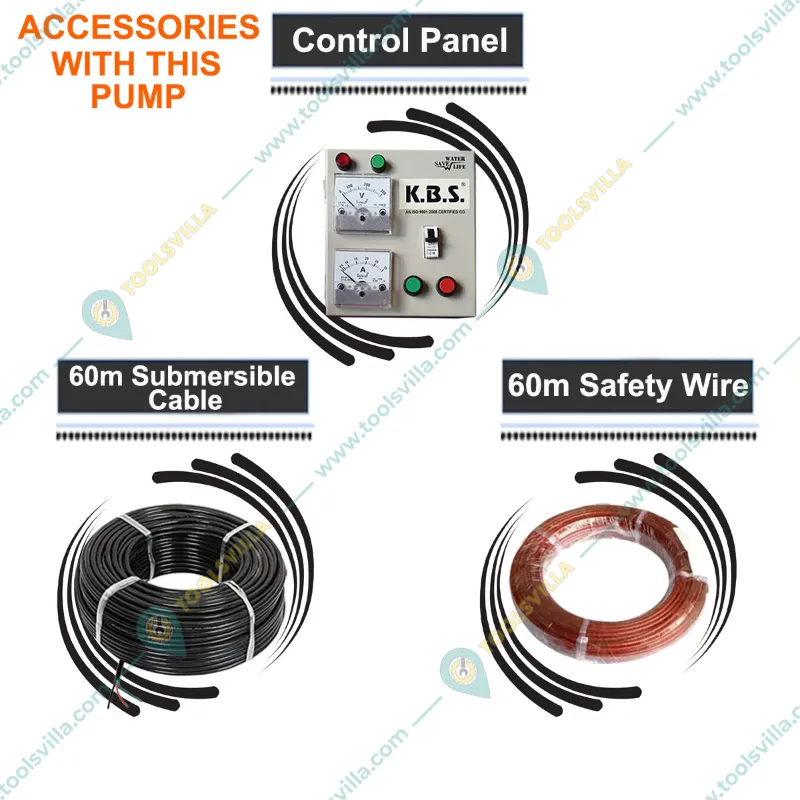

Accessories

 :

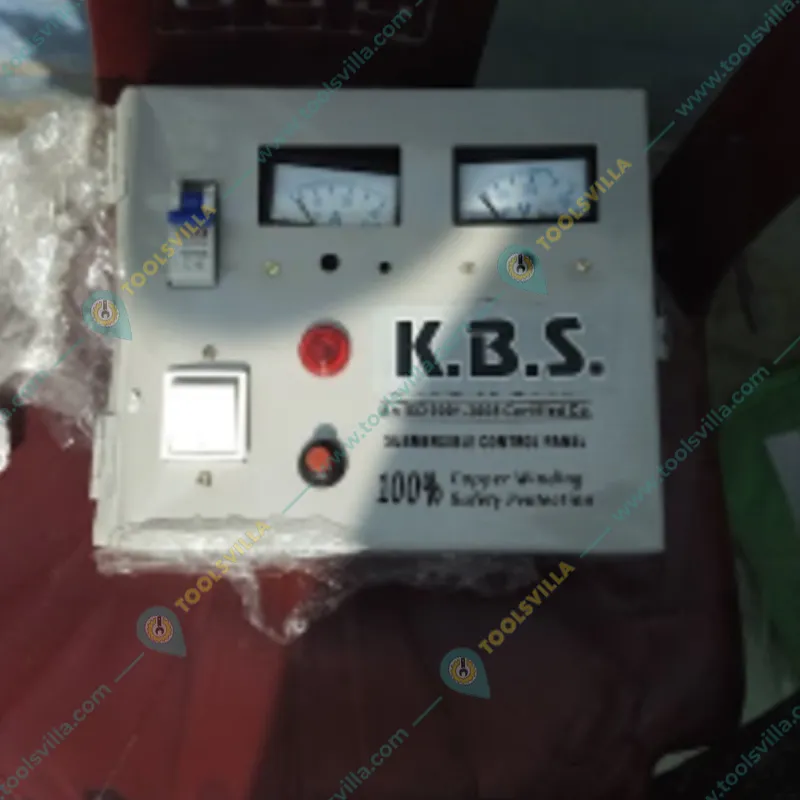

  • Control Panel
  • 60 Meter Submersible Cable
  • 60 Meter Safety Wire

Applications

 :
  • Drinking water supply. Domestic & community water supply.
  • Drip irrigation, Sprinkler irrigation and gardening.
  • Housing-Complexes, Hospitals, High rise building.
  • Fire fighting, Landscaping, Fountains, Service stations.
  • De-watering of mines, Cooling water circulation and Booster application.

Warranty :
  • 1 Year WARRANTY on manufacturing defects only.

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
