Brand: CRI

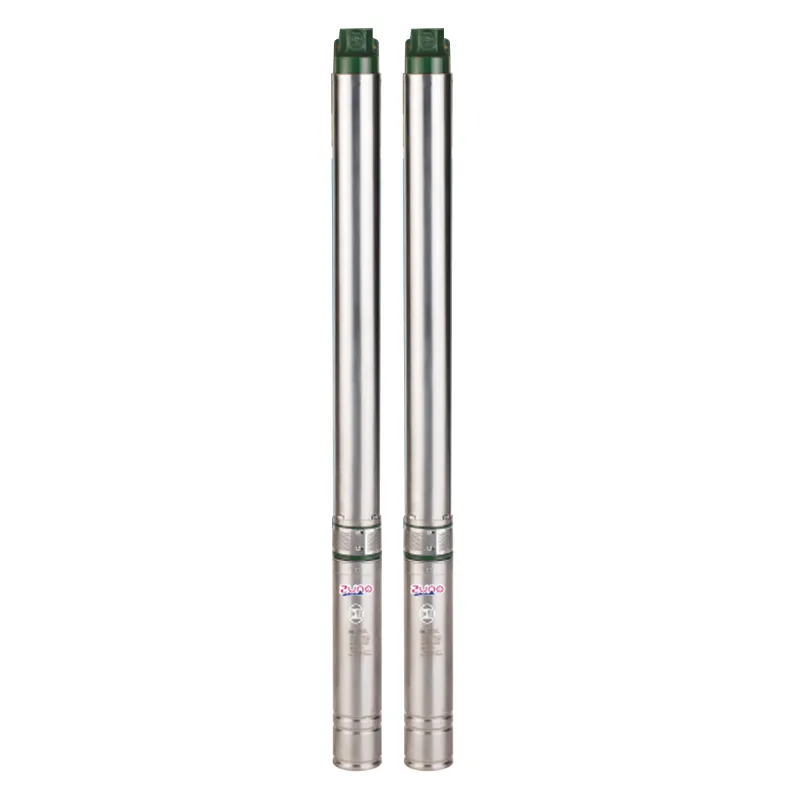

CRI 1.5Hp 19 Stage 4"(V4) 1Phase Water Filled Submersible Pump, 141m Head (ZUNO, CRI4R-2N/19) - 1 Year Warranty
SKU: TB-CR-33648
₹20799 (Including GST)
MRP : ₹26623
Get extra ₹312 Discount (On Checkout)
Delivery By: May 25 - May 27
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1.5 Hp 19 Stage V4 Borewell Submersible Pump
Water Cooled Technology
141m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Water Cooled Technology
141m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
C.R.I. Zuno 4 inch(100 mm) Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering
Specification
:- Brand: CRI
- Power : 1.5 hp
- Weight (Approx.) : 25 kg
- Flow Rate : 54 lpm
- Head : 141 meter
- Model No. : CRI4R-2N/19
- Series : ZUNO
- Wattage : 1.1 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
- No. of Stages : 19
- Outlet Size : 32 mm
- Head Range : 141 to 50 Meter (462 to 164 Feet)
- Discharge Range : 0 to 72 LPM (0 to 4320 LPH)
- Cooling Type : Oil Cooled
- Borewell Size : 100 mm (4 inch)
- Star Rating : 3 Star
- Winding Material : Copper
- Speed : 2850 RPM
- Degree of Protection : IP 58
- Direction of Rotation : Counter Clockwise from Driving End
- Minimum Cooling Flow Along the Motor : 0.15m/sec
- Type of Duty : S1 (Continuous)
- Method of Starting : Capacitor Start Capacitor Run/CSR
- Maximum Start Per Hour : 20 Times
WARRANTY :
- 1 Year Warranty
