Brand : CRI
CRI 1.5Hp 19 Stage 4"(V4) 1Phase Water Filled Submersible Pump With CP, 141m Head (GENIE, CRI4R-2N/19) - 1 Year Warranty
SKU : TB-CR-33625
MRP : ₹30719
₹23999
22% OFF!
-
1
+
521 people have viewed this recently
Get Extra ₹360 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

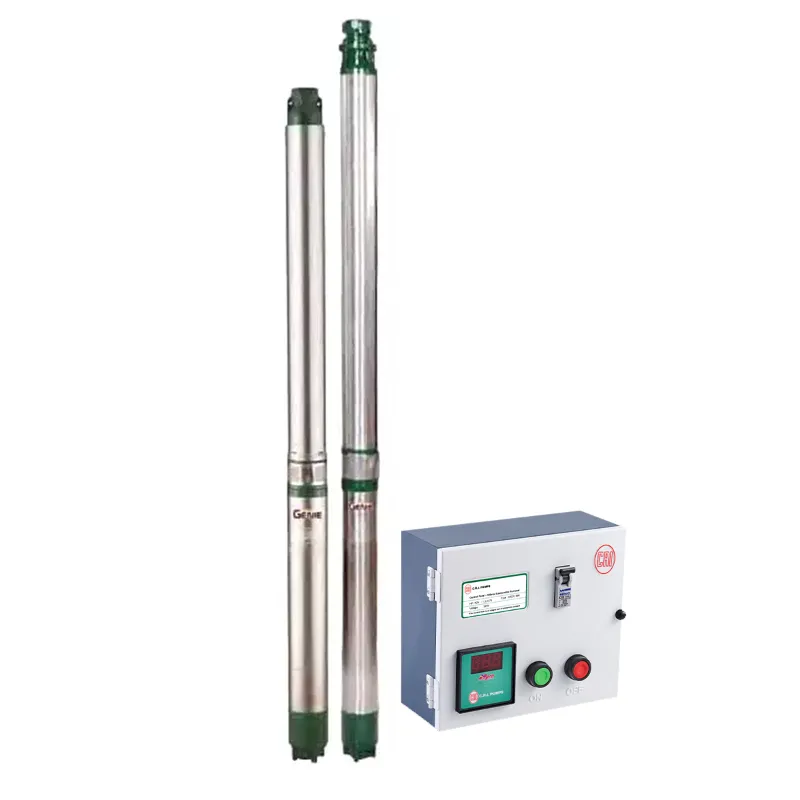

CRI 1.5 Hp 19 Stage Borewell Submersible Pump With Control Panel
Water Cooled Technology
141m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 1.5 hp
  • Weight (Approx.) : 27 kg
  • Flow Rate : 54 lpm
  • Head : 141 meter
  • Model No. : CRI4R-2N/19
  • Series : GENIE
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • No. of Stages : 19
  • Outlet Size : 32 mm
  • Head Range : 141 to 50 Meter (462 to 164 Feet)
  • Discharge Range : 0 to 54 LPM (0 to 3000 LPH)
  • Cooling Type : Water Cooled
  • Borewell Size : 100 mm (4 inch)
  • Star Rating : 2 Star
  • Winding Material : Copper
  • Speed : 2850 RPM
  • Degree of Protection : IP 58
  • Direction of Rotation : Counter Clockwise from Driving End
  • Minimum Cooling Flow Along the Motor : 0.15m/sec
  • Type of Duty : S1 (Continuous)
  • Method of Starting : Capacitor Start Capacitor Run
  • Maximum Start Per Hour : 20 Times
Description
C.R.I. Genie 4 inch(100 mm) Borewell submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering. All vital components of these pumps are made up of corrosive resistance thermoplastic and with stainless steel shaft.

Accessories

 :
  • Control Panel

WARRANTY :
  • 1 Year Warranty
