Brand : Gemston

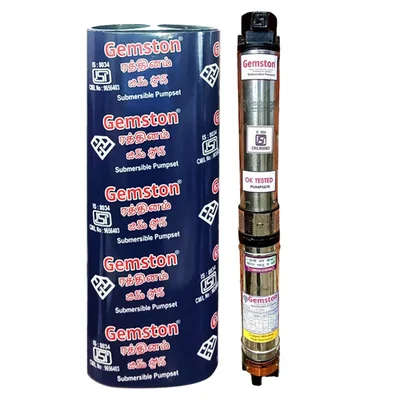

Gemston 1.5 HP 20 Stage(4 inch) V-4 Single Phase Water Filled Submersible Pump, 80M Max. Head, 2000 LPH (1 Year Warranty)
SKU : TI-G1-16815
MRP : ₹11000
₹7799
29% OFF!
-
1
+
9 people have bought this recently
Get Extra ₹117 OFF on Prepaid Orders
Delivery By: Nov 8 - Nov 10
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
GEMSTON 1.5 HP 20 Stage Submersible Pump
80M Max. Head
2000 LPH Max. Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: Gemston
  • Power : 1.5 hp
  • Weight (Approx.) : 16.50 kg
  • Flow Rate : 33 lpm
  • Head : 80 meter
  • Product Type : Submersible Pump
  • Brand : GEMSTON
  • Wattage : 1.1 kW
  • Electricity Connection : Single Phase
  • Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
  • Current Rating : 8 Amp
  • No Of Stages : 20
  • Cora : 2
  • Type : V-4
  • Delivery : 1.25 Inch (31.75 mm)
  • Max. Head : 80 Meter (262 Feet)
  • Max. Discharge Rate : 2000 LPH (33 LPM)
  • Borewell Size : 100 mm (4 Inch)
  • Outlet Pipe Size : 1.5 Inch (38.1 mm)
  • Winding Material : 100% Copper
  • Cooling Type : Water Filled

Material Of Construction :
  • Thrust Bearing : Carbon
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • Non Return Valve (NRV) : Cast Iron
Description
A Water Cooled Submersible Pump is fully submerged in the fluid it pumps, and its motor is cooled by the surrounding water, eliminating the need for external cooling. This design makes it highly efficient, quiet, and prevents overheating, ideal for deep wells, boreholes, and other applications where the pump is constantly immersed.

Features

 :
  • Compact designed, High Operating Efficiency.
  • The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
  • Higher output, lesser power consumption
  • ISI Certified.
  • IS : 8034
  • CM/L : 9656403

Applications

 :
  • Domestic and community water supply.
  • Rural water supply
  • Gardening and small farm irrigation.
  • Construction site.
  • Water supplies for high rise building.

Warranty :
  • 1 Year Warranty On Manufacturing Defects Only

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
