Brand: CRI

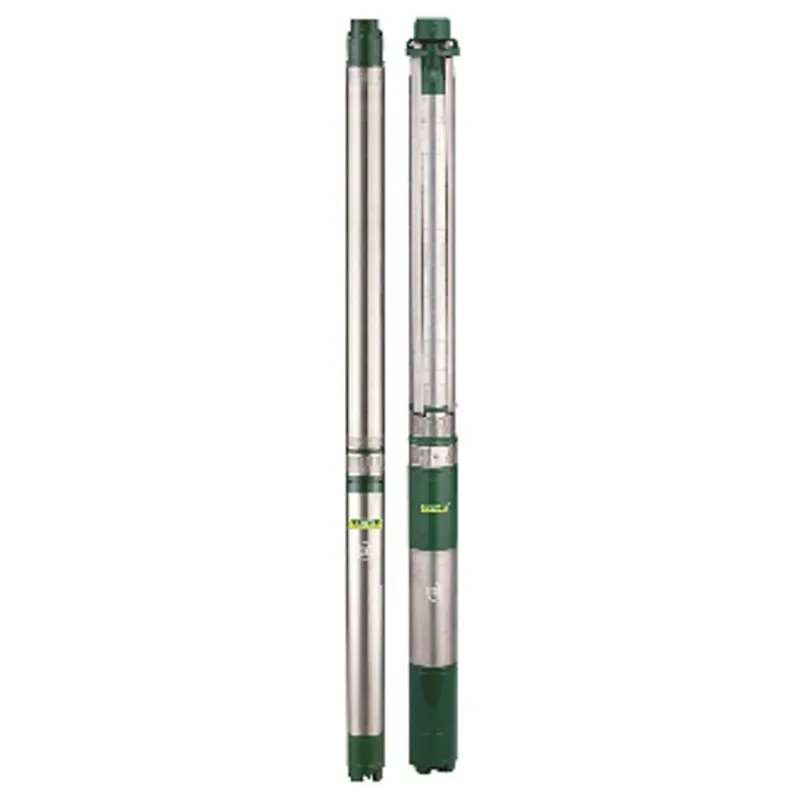

CRI 1.5Hp 24 Stage 3"(V3) 1Phase Water Filled Submersible Pump, 105m Head (LENA, CRI3R-31/24) - 1 Year Warranty
SKU: TB-CR-33656
1078 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹30783 ₹23199
25% OFF!
1078 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹23199 (Including GST)
MRP : ₹30783
25% OFF!
Get Extra ₹348 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
CRI 1.5 Hp 24 Stage V3 Borewell Submersible Pump
Water Cooled Technology
105m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Water Cooled Technology
105m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: CRI
- Power : 1.5 hp
- Weight (Approx.) : 28 kg
- Flow Rate : 54 lpm
- Head : 105 meter
- Model No. : CRI3R-31/24
- Series : LENA
- Wattage : 1.1 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
- No. of Stages : 24
- Outlet Size : 32 mm
- Head Range : 105 to 50 Meter (344 to 164 Feet)
- Discharge Range : 0 to 54 LPM (0 to 3240 LPH)
- Cooling Type : Oil Cooled
- Borewell Size : 80 mm (3 inch)
- Winding Material : Copper
- Speed : 2800 RPM
- Degree of Protection : IP 58
- Direction of Rotation : Counter Clockwise from Driving End
- Minimum Cooling Flow Along the Motor : 0.15m/sec
- Type of Duty : S1 (Continuous)
- Method of Starting : Capacitor Start Capacitor Run
- Maximum Start Per Hour : 20 Times
Description
C.R.I. LENA 3 inch Borewell Submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. All vital components of these pumps are made up of corrosive resistance thermo plastic & SS 304. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. C.R.I. products are engineered to perfection with utmost care and stringent quality control at all stages to ensure a trouble free service.
