Kirloskar (NEO 25-1525 CP) 1.5 HP Submersible Pump With CP
1 Phase, Water Cooled
168M Max. Head
2820 LPH Max. Discharge
1.6 Years Of Warranty
Brand : Kirloskar

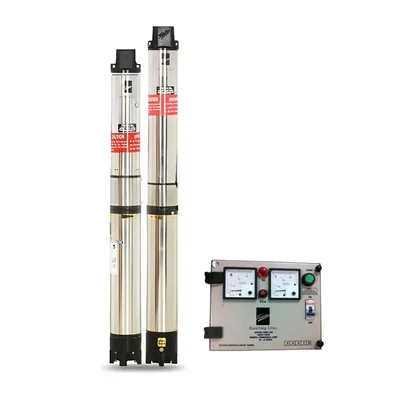

Kirloskar 1.5HP 25 Stage(4") 1Phase Water Cooled Submersible Pump With CP, 551ft Head-1.6 Years Warranty(NEO 25-1525 CP)
SKU : TI-KN-12932
MRP : ₹42000
₹28999
31% OFF!
-
1
+
1926 people have viewed this recently
Delivery By: Aug 24 - Aug 26
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 1.5 hp
- Weight (Approx.) : 22 kg
- Flow Rate : 47 lpm
- Head : 168 meter
- Model No. : NEO 25-1525 CP
- Product Type : Borewell Submersible Pump
- Brand : KIRLOSKAR
- Wattage : 1.10 kW
- No Of Stages : 25
- Outlet Size : 32 mm
- Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Rated Current : 11.5 Amp.
- Head Range : 168 Meter (551 Feet)
- Discharge Range : 47 LPM (2820 LPH)
- Borewell Size : 100 mm (4 inch)
- Cooling Type : Water Cooled
- Insulation : B Class
- Protection : IP 68
- Winding Material : Copper
Material Of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Description
A water-cooled submersible pump is designed to operate fully submerged in a fluid, with its motor's heat dissipated directly into the surrounding pumped liquid, ensuring continuous and efficient operation. These pumps are extensively used for domestic, agricultural, and industrial water supply, dewatering, and wastewater management, especially where reliable and continuous pumping from submerged sources is required.
Features
:- Wide Voltage Range Operability : Voltage range is 180 - 240 Volts. Protects motor from burning due to lower/higher voltage
- High Efficiency and Energy-saving Design : Higher output, lesser power consumption
- Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life.
- CED - Cathodic Electro Deposition Coating : Better resistance against corrosion.
- Nationwide Service Network : Easy availability of spares and prompt after sales services through nationwide company authorised service centers.
Applications
:- Domestic and community water supply
- Rural water supply
- Gardening and small farm irrigation
- Construction site
- Water supplies for high rise building
Warranty :
- 1.6 Years Onsite Warranty
