Kirloskar 1.5 Hp 1Ph Borewell Submersible Pump (NEO 30-1520)
140 meters Head Range
48 LPM Discharge Rate
1.6 Years Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar

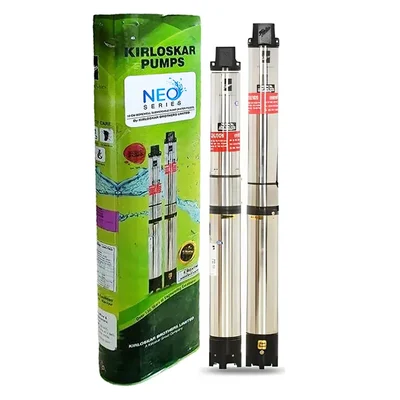

Kirloskar 1.5Hp 20 Stage(4 inch) 1Ph Water Cooled Submersible Pump (NEO 30-1520) - 1.6 Years Warranty
SKU : TI-K1-26210
MRP : ₹25000
₹18999
24% OFF!
-
1
+
6197 people have viewed this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 1.5 hp
- Weight (Approx.) : 28 kg
- Flow Rate : 48 lpm
- Head : 140 meter
- Model No. : NEO 30-1520
- Product Name : Borewell Submersible Pump
- Voltage : 180 - 240 Volts, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Motor Wattage : 1.1 kW
- Rated Current : 11.5 Amp
- Cooling Type : Water Filled
- Insulation : Class B
- Protection : IP 68
- No. of Stages : 20
- Outlet Size : 32 mm
- Borewell Size : 100 mm (4 inch)
- Max. Head : 459 Feet (140 meters)
- Max. Discharge Rate : 48 LPM (2880 LPH)
- Winding Material : Copper
Material Of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Description
A pump that can be completely submerged in water is a submersible pump, often known as an electric submersible pump. The pump's body and motor are tightly connected and hermetically sealed. Water is forced to the surface by a submersible pump, which transforms rotational energy into kinetic energy and pressure energy.
Features
:- Wide Voltage Range Operability : The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage
- High Efficiency and Energy-saving Design : Higher output, lesser power consumption
- Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
- Longer and Trouble-Free Life : High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years.
- Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life.
- CED - Cathodic Electro Deposition Coating : Better resistance against corrosion
- Nationwide Service Network : Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers
Applications
:- Domestic and community water supply
- Rural water supply
- Gardening and small farm irrigation
- Construction site
- Water supplies for high rise building
Warranty :
- 1.6 Years on site Warranty
