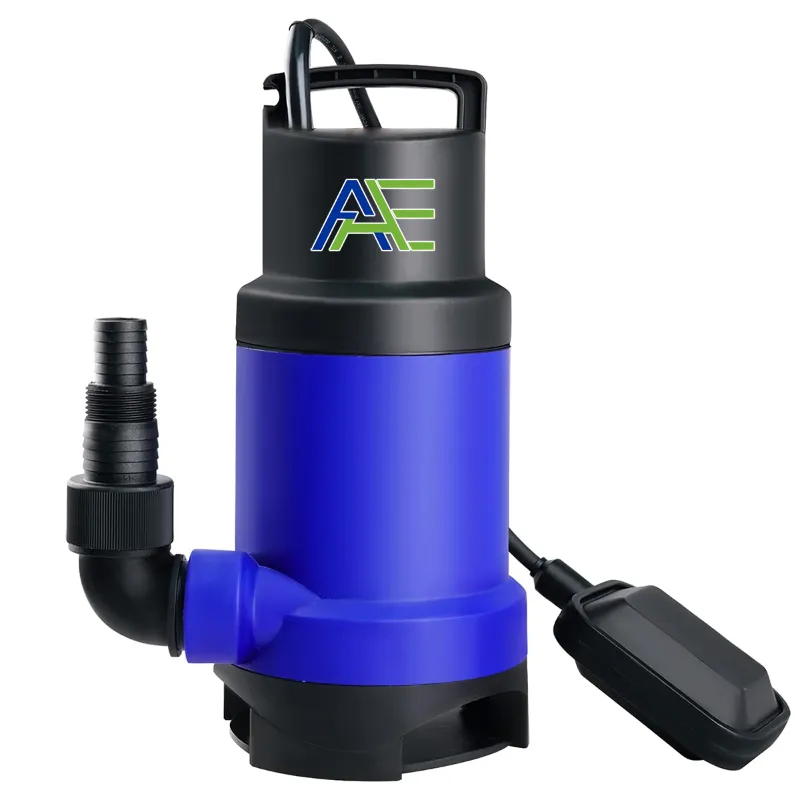

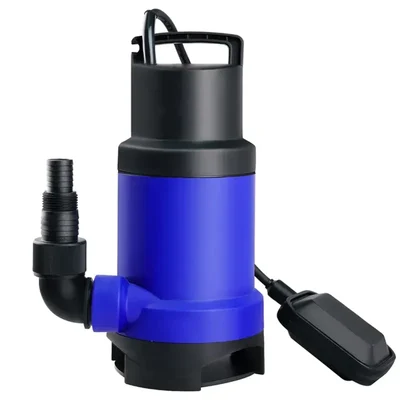

The drainage pump is designed for efficiently removing water from pits and deep roadway underpasses, as well as for dewatering basements and courtyards that are at risk of flooding or groundwater accumulation. Typically, it is activated automatically using float switches.
Features
:- Stable voltage
- High lift
- Multi-diameter pipe
- Large flow
- High power
- Into the water depth
- Equipped with a level float switch for continuous and automatic pump operation.
Specification
:- Product Type: Power - 1.5HP
- Brand: Generic ( Made in India )
- Power : 1.5 hp
- Weight (Approx.) : 5 kg
- Flow Rate : 250 lpm
- Head : 10 meter
- Product Name : Sewage Submersible Pump
- Wattage : 1.1 kW
- Voltage Rating : 230 V AC Supply
- Electricity Connection : Single Phase
- Max. Head Range : 10 Meter (33 Feet)
- Max. Discharge Rate : 15000 LPH (250 LPM)
- Cable Length : 5 Meter
- Max Submersible Depth : 7 Meter (23 Feet)
- Solid Handling Size : Up to 35 mm
- Delivery Size : 50 mm
- No Load Speed : 2800 RPM
- Temperature Range : Up to 35 °C
- Shaft Material : Stainless Steel
Attention to First Use :
- Before starting the machine carefully check reliability of the waterproof sealing device and check whether the sealing plug is rotating and the sealing is good.
- Exhaust before launching. Unplug the power, put it in the water and vent it.
Accessories
:Applications
:- Ideal for automatic drainage in residential settings.
- Effectively drains water from cellars and garages prone to flooding.
- Draining waste from tanks or rivers.
- Emptying swimming pools.
- Clearing water from fountains, excavations, and subways.
- Capable of lifting liquids containing suspended solids from septic tanks.
WARRANTY :
- 1 Year Warranty on Manufacturing Defects Only
- The warranty coverage is limited to the PUMP of the system, and does not extend to any ACCESSORIES.
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
