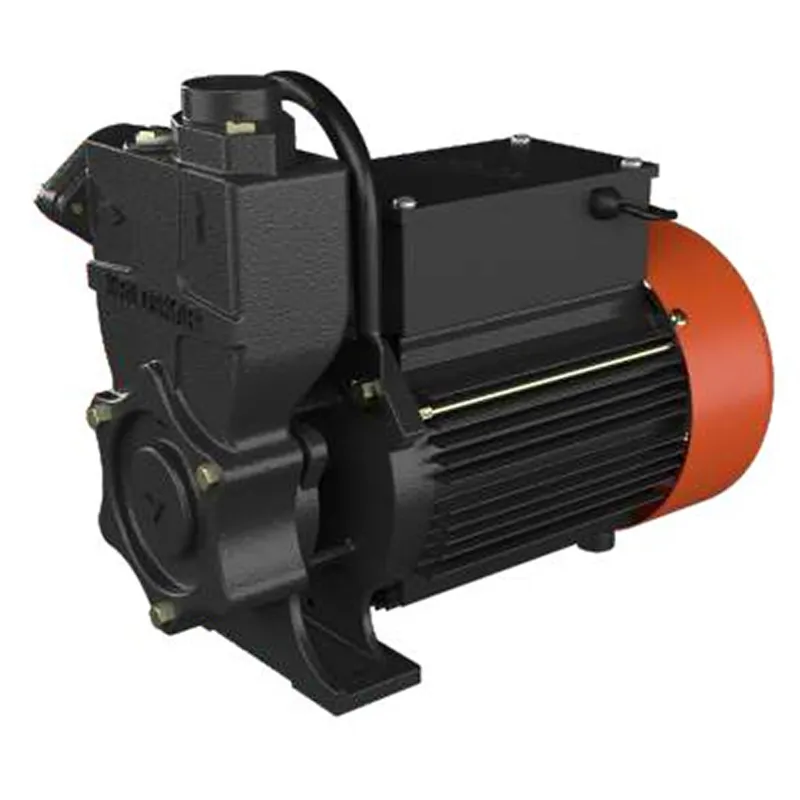

• Model No. : MINI-58C (GOLD)
• Product Name : Self Priming Monoblock Pump
• Wattage : 1.1 kW
• Rated Voltage : 180 - 240 Volts, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
• Head Range : 10 to 58 Meter (32 to 190 Feet)
• Discharge Range :  4800 to 970 LPH (80 to 16 LPM)
• Insulation Type : F Class
• Protection : IP44

Features

• High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
• High Grade F-Class Insulation : Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life.
• Thermal Overload Protector (TOP) : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
• Wide Voltage Range : The motor is designed to withstand wide voltage variation from 180 to 240 volts and reduces chances of motor burning due to low/high voltage.
• Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
• Dynamically Balanced Rotating Parts: Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
• High Suction Lift : The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
• Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.
• Light weight and Compact Design : It allows user to carry the pump anywhere with ease, adding to its portability and convenience of use.

Applications
