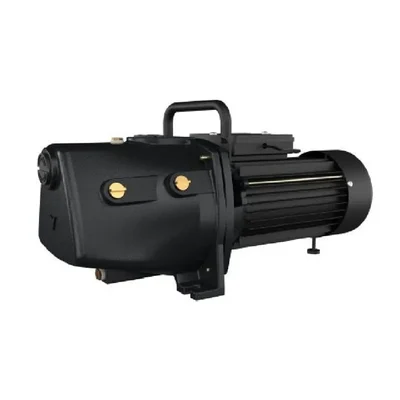

Kirloskar 1.5 Hp Single Phase Copper Winding Shallow Well Pump, 38m Head, 25X25mm (LIFTER ULTRA 175)

4.5

• Model No. : LIFTER ULTRA 175
• Product Type : Shallow Well Pump
• Wattage : 1.1 kW
• Electricity Connection : Single Phase
• Rated Voltage : 160 to 240 Volt, 50 Hz AC Power Supply
• Pipe Size (Suction X Delivery) : 25X25 mm
• Head Range : 20 to 38 Meter (65 to 124 Feet)
• Discharge Range : 4700 to 1300 LPH (78 to 22 LPM)
• Winding Material : Copper
• Speed : 2800 RPM
• Number of Stages : 1
• Dimension (LxWxH) : 180 X 230 X 470 mm

Features

• Inbuilt NRV design : Pumps are fitted with NRV that ensures efficient water flow and prevents backflow. The NRV design arrangement helps the pump to stay primed (filled with water) and ready to operate immediately when needed.
• Inbuilt Suction flange : The suction flange arrangement eliminates pipe unions and fittings, reducing assembly time and plumbing costs.
• High Efficiency and Energy Saving Design : Innovative design manufactured at a state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• High Grade F-Class Insulation : Robust design withstands extreme fluctuations which ensures the reliability and the safety of the equipment and enhances its life.
• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in case of low voltage.
• Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication is required throughout the life cycle and also ensure low noise level.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damage during the operation. Consistent performance is ensured by maintaining concentricity.
• Easy Maintainable Design : Easy maintainable design and better interchangeability of components so that pumps can be serviced even at remote locations by semi-skilled technicians.
• Handle to Enhance Grip and Portability : A handle attached to the pump allows users to carry the pump anywhere with ease, adding to its portability and convenience of use.
• High Suction Lift : The pumps have suction lift capacity up to 8.5 metres with high head, allowing to pump water at high volumes for a variety of applications.
• Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.
• Cathodic Electro Deposition(CED)Coating : CED is the latest coating technology for corrosion resistance; uniform coating provides 5 times more protection over conventional painting, resulting in longer life. The hydraulic part of Kirloskar pumps is CED Coated.

Applications

• Lifting water to apartment and Houses
• Pumping water from shallow wells and tanks.
• Lawn sprinklers & water transfer
• Domestic water supply.
