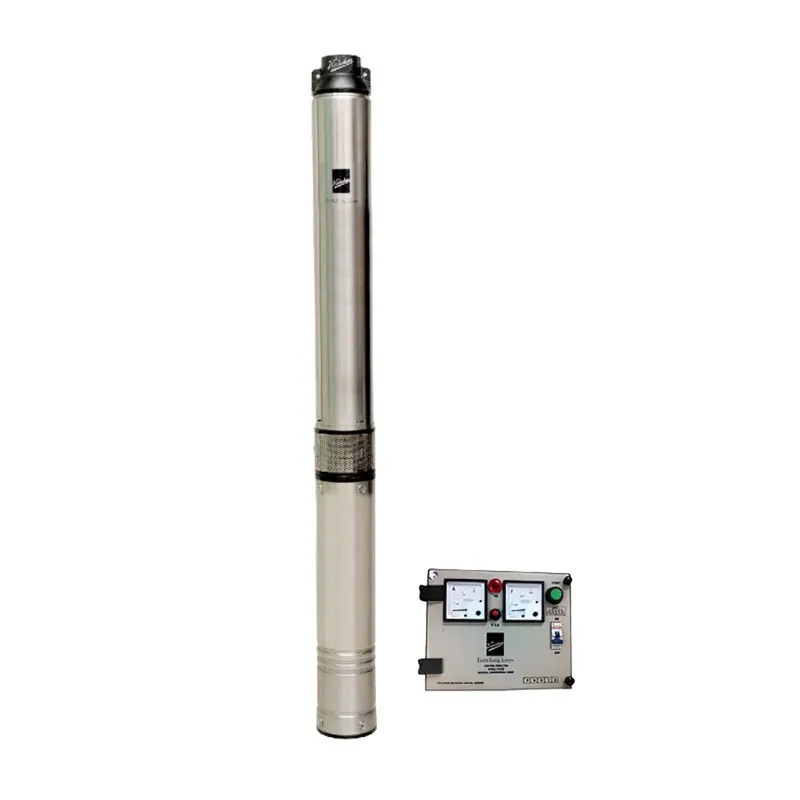

Kirloskar 1.5HP 14 Stage 4" 1Ph Oil Filled Submersible Pump With CP, 354ft Head-1 Year Warranty(KP4 JALRAAJ UVA 60-1514)
Brand:  Kirloskar

Kirloskar 1.5HP 14 Stage 4" 1Ph Oil Filled Submersible Pump With CP, 354ft Head-1 Year Warranty(KP4 JALRAAJ UVA 60-1514)
5.0 star

SKU: TI-K1-19006
₹15999 (Including GST)
MRP : ₹25900
Get extra ₹240 Discount (On Checkout)
delivery by
Delivery By: May 22 - May 24
Qty:
Easy Return & Refund
Easy Return
& Refund
Quality Assurance
Quality
Assurance
Trusted Delivery
Trusted
Delivery
After Sales Assistance
After Sales
Assistance
Buyer Protection
Buyer
Protection

Short Description

Kirloskar (KP4 JALRAAJ UVA 60-1514) 1.5 HP Submersible Pump With Control Panel
100 LPM Max. Discharge Rate
108M Max. Head Range
10Cm (4 inch) Boring Size
1 Year Warranty
Country of origin: India

Description

This Kirloskar KP4 JALRAAJ UVA 60 series borewell submersible pump is consists of a motor at the bottom and pumps on the top. The pump is submerged in water, eliminating the need for priming as the water pressure itself moves the water into the pump.

Features

 :
  • High Efficiency And Energy Saving Design : Higher output, lesser power consumption.
  • Wide Voltage Design : The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage.
  • Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation.
  • Designed To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
  • Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
  • Flatter Efficiency Curve : Minimal drop in efficiency during entire operating range, resulting in lower operating cost.
  • Suitable For Horizontal Applications : High capacity angular ball bearing motor construction suited to operate in the horizontal position.

Specification

 :
  • Brand: Kirloskar
  • Power : 1.5 hp
  • Weight (Approx.) : 22 kg
  • Flow Rate : 100 lpm
  • Head : 108 meter
  • Model No. : KP4 JALRAAJ UVA 60-1514
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • With Control Panel : Yes
  • Wattage : 1.1 kW
  • No. of Stages : 14
  • Power Supply : 220V, 50 Hz, AC Supply
  • Electricity Connection : Single Phase
  • Cooling Type : Oil Filled
  • Delivery Size : 32 mm
  • Current Rating : 9.5 Amp
  • Boring Size : 10 Cm (4 inch)
  • Head Range : 108 Meter (354 Feet)
  • Discharge Rate : 100 LPM (6000 LPH)
  • Insulation : F Class
  • Protection : IP 68
  • Speed : 2790 RPM
  • Min. Submergence From Bottom : 1 mm
  • Winding Material : Copper

Material Of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor Bearing : Ball Bearing
  • Pump Bushes : NBR
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Accessories

 :
  • Control Panel

Applications

 :
  • Domestic and community water supply
  • Water supply for high rise building
  • Gardening and small farm irrigation
  • Construction site
  • Groundwater supply to waterworks

Warranty :
  • One year on site Warranty
