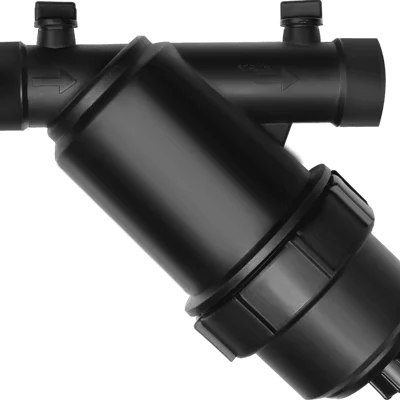

Automat HT-123YM Y Type 1.5 inch Screen Filter Used for Agriculture, Irrigation System
SKU : JS-HA-2021150
MRP :
₹1550
-
1
+
23 people have bought this recently
Get Extra  ₹23 OFF on Prepaid Orders
Delivery By: Nov 2 - Nov 4
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Y Type Screen Filter (15m3/hr) for Irrigation
1.5 inch (3.81 cm approx) Size
Automat
Country of origin: India
Specification
  • Brand: Automat
  • Model No : HT-123YM
  • Size : 1.5 Inch (3.81 cm approx.)
  • Material : Reinforce Polypropylene
  • Max. Working Pressure : 8kg/cm2
  • Inlet/ Outlet Connection : 1.5 Inch (3.81 cm approx.) BSP/NPT Male Thread
  • Range of Flow Rate : 12 -16 m3/hr
  • Recommended Flow : 15 m3/h (250 litre/min)
  • Filtration Surface Area : 295 cm2
  • Distance between End Connections : 237 mm
  • Filter Height : 320 mm
  • Filter Width : 128 mm
  • Filtering Cartridge : 304/316 Grade Stainless Steel
  • Cartridge Diameter : 70 mm
  • Cartridge Length : 224 mm
  • End Plug : 1/4 Inch (0.635 cm approx.) Female Threaded
  • Filter Mesh (Standard) : Double Screen 30/120 Mesh
Description

A screen filter is a filtration device that uses a rigid or flexible screen to separate sand and other fine particles from liquids


Features

 :
  • Flow passes through inside to outside of Screen cartridge.
  • Uniform distribution of flow into filter housing optimize filtration process.
  • Filter designed for Max. operating pressure 6 Bar (PN-6).
  • 1/4 Inch(0.635 cm approx) Male Threaded 2 Pressure Ports.
  • Stainless steel (SS 316) double mesh screen for rust prevention.
  • Filter body cap equipped with 3/4 inch (1.905 cm approx) female threaded connection for draining.
  • Screen Cartridge with Double Screen 30 & 120 mesh to avoid tearing of mesh.

Shipping Weight & Dimensions

 :Verified
Package Dimensions
(L X W X H)
: 38.1 cm X 15.24 cm X 22.86 cm
Package Weight
:
1.14 Kg
