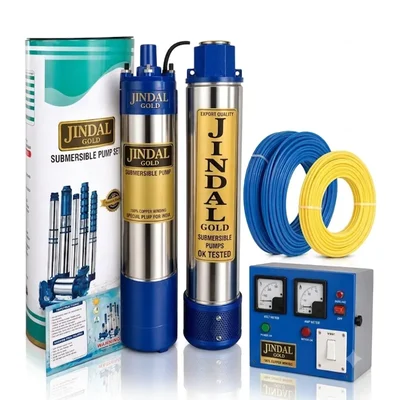

Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 240ft Head, 6000 LPH

Brand: Generic ( Made in India )

Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 240ft Head, 6000 LPH

Name: Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 240ft Head, 6000 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-79883
Price: 8199 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-79883

MRP : ₹11100 ₹8199

26% OFF!

Get Extra ₹123 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹8199 (Including GST)

MRP : ₹11100

26% OFF!

Get Extra ₹123 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP 12 Stage V4 Submersible Pump

240ft Max Head, 100 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 17 kg
Flow Rate : 100 lpm
Head : 73 meter

Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 180 to 220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 240 Feet (73 Meter)
Max. Flow/Discharge Rate : 100 LPM (6000 LPH)
Pipe Size (Suction x Delivery) : 32 mm
Cooling Type : Water Cooled

Material Of Construction:

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

Introducing the Jindal 1.5 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump with a 32mm outlet, designed for optimal performance and durability. This high-efficiency pump is perfect for a variety of applications, including residential water supply, irrigation, and industrial use.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty:

1 Year WARRANTY on manufacturing defects only.

Warranty Terms:

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Usage

Regularly monitor the electrical connections and control panel for secure wiring.
Ensure operating voltage remains between 180 to 220 volts to protect the motor.
Inspect the 30m submersible cable and safety wire periodically for any signs of wear.
Ensure the pump is completely submerged during operation to prevent dry running.
Keep the 32mm outlet clear of debris and silt to maintain the 100 lpm flow rate.
