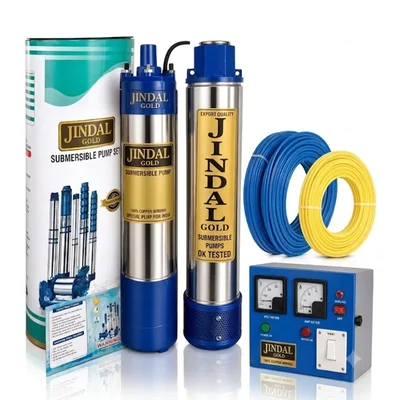

Jindal 1.5 HP 13 Stage V4 Single Phase Water Cooled Submersible Pump, 260ft Head, 6000 LPH

• Product Name : Borewell Submersible Pump
• Wattage : 1.1 kW
• Supply Voltage : 180 to 220 Volt, 50 Hertz, AC Power Suppl
• Electricity Connection : Single Phase
• No Of Stages : 13 Stage
• Pump Type : V4
• Suitable Bore Size : 4 inch
• Max. Head Range : 260 Feet (73 Meter)
• Max. Flow/Discharge Rate : 100 LPM (6000 LPH)
• Pipe Size (Suction x Delivery) : 25x25 millimeter (1x1 inch)
• Cooling Type : Water Cooled



Features

• Corrosion resistant stainless steel body
• Specially designed for low voltage working
• High Electrical and Mechanical efficiency
• Higher heat dissipation
• Dynamically balanced rotor and other rotating parts for uniform clearance
• Specially designed bearing to withstand axial thrust loads
• Designed for high voltage fluctuation
• High efficiency, low power consumption

Applications

• Drinking water supply. Domestic & community water supply
• Drip irrigation, Sprinkler irrigation and gardening.
• Housing-Complexes, Hospitals, High rise building.
• Fire fighting, Landscaping, Fountains, Service stations.
• De-watering of mines, Cooling water circulation and Booster application.
