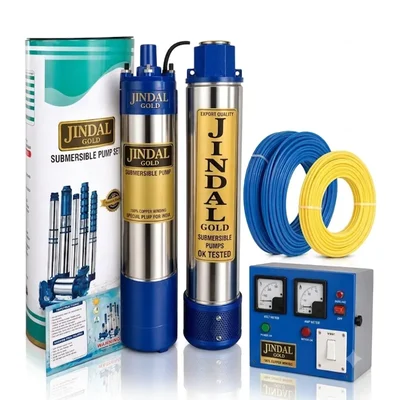

Jindal 1.5 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH

Brand: Generic ( Made in India )

Jindal 1.5 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH

Name: Jindal 1.5 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-79728
Price: 7699 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-79728

MRP : ₹10400 ₹7699

26% OFF!

Get Extra ₹115 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7699 (Including GST)

MRP : ₹10400

26% OFF!

Get Extra ₹115 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP 15 stage V3 Submersible Pump

180ft max Head, 70 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 18.5 kg
Flow Rate : 70 lpm
Head : 54.86 meter

Power : 1.5 Hp
Weight (Approx.) : 18.5 Kg
Flow Rate : 70 lpm
Head : 54.86 meter
Product Name : Borewell Submersible Pum
Wattage : 1.1 kW
Supply Voltage : 150 to 240 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 180 Feet (54.86 Meter)
Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Die Cast
Impeller : PVC
Pump Shaft : Steel

A highly efficient water-cooled submersible pump designed to be fully submerged in fluid, completely eliminating the need for external cooling. Its rust-resistant design ensures extremely quiet and continuous operation for deep wells without overheating.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption
Includes Control Panel, 30 Meter Submersible Cable, and Safety Wire

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
