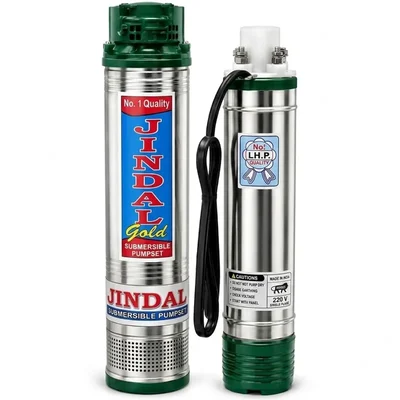

Jindal Gold 1.5 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 6000 LPH

Brand: Generic ( Made in India )

Jindal Gold 1.5 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 6000 LPH

Name: Jindal Gold 1.5 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 6000 LPH
Brand: Generic ( Made in India )
SKU: TI-JG-80367
Price: 7349 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-JG-80367

MRP : ₹10000 ₹7349

27% OFF!

Get Extra ₹110 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7349 (Including GST)

MRP : ₹10000

27% OFF!

Get Extra ₹110 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal Gold 1.5 HP 15 Stage V4 Submersible Pump

300ft Max Head, 100 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 17 kg
Flow Rate : 100 lpm
Head : 91 meter

Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 180-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 300 Feet (91 Meter)
Max. Flow/Discharge Rate : 100 LPM (6000 LPH)
Pipe Size (Suction x Delivery) : 25x25 mm (1x1 inch)
Cooling Type : Water Cooled

Material Of Construction:

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

This borewell submersible pump is designed for extracting water efficiently from deep underground sources. Powered by a 1.5 HP motor, it is suitable for residential, commercial, and agricultural water pumping needs.

Features

Corrosion resistant stainless steel body constructio
Specially engineered for reliable operation during low voltage conditions
Delivers high electrical and mechanical efficiency with low power consumption
Superior heat dissipation capability for continuous usage
Dynamically balanced rotor and rotating components ensure uniform clearance
Custom-designed bearing system built to withstand high axial thrust loads
Robust design capable of handling high voltage fluctuations

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty:

1 Year WARRANTY on manufacturing defects only.

Warranty Terms:

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Ensure the pump is completely submerged in water before turning on power to prevent dry run damage.
Check electric control panel supply regularly to maintain voltage within 180 to 220 volt range.
Inspect piping joints and delivery pipe connections periodically for leaks or clogging.
Keep the borewell clear of excessive sand, mud, and silt debris to protect impellers.
