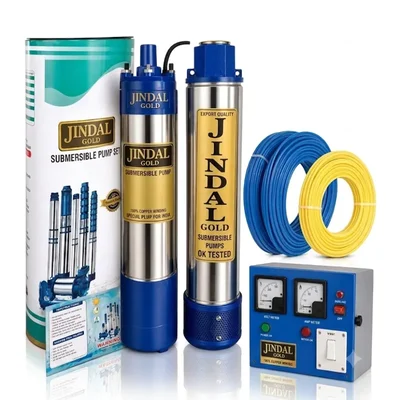

Jindal Gold 1.5 Hp 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 6000 LPH

Brand: Generic ( Made in India )

Jindal Gold 1.5 Hp 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 6000 LPH

Name: Jindal Gold 1.5 Hp 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 6000 LPH
Brand: Generic ( Made in India )
SKU: TI-JG-79945
Price: 8099 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-JG-79945

MRP : ₹11000 ₹8099

26% OFF!

Get Extra ₹121 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹8099 (Including GST)

MRP : ₹11000

26% OFF!

Get Extra ₹121 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal Gold 1.5 HP 15 Stage V4 Submersible Pump

300ft max Head, 100 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 17 kg
Flow Rate : 100 lpm
Head : 91 meter

Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 180-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 300 Feet (91 Meter)
Max. Flow/Discharge Rate : 100 LPM (6000 LPH)
Pipe Size (Suction x Delivery) : 25x25 mm (1x1 inch)
Cooling Type : Water Cooled
Winding Material : Copper (Same for all listing)
Material Of Construction :
Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

A water-cooled submersible pump is designed to operate completely submerged in a borewell, with its motor cooled by the surrounding water, ensuring efficient and continuous pumping from deep underground sources. These pumps are primarily used for efficient and reliable extraction of water for domestic, agricultural, and industrial water supply.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption
Includes Control Panel, 30 Meter Long Submersible Cable (1.5mm Thickness), and Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
