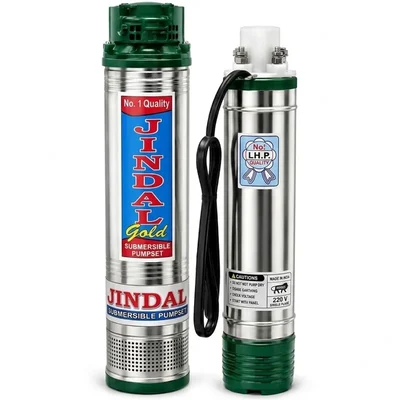

Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump With CP, 60m Submersible Cable, Safety Wire, 180ft Head, 4200 LPH

Brand: Generic ( Made in India )

Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump With CP, 60m Submersible Cable, Safety Wire, 180ft Head, 4200 LPH

Name: Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump With CP, 60m Submersible Cable, Safety Wire, 180ft Head, 4200 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-80114
Price: 9499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80114

MRP : ₹12900 ₹9499

26% OFF!

Get Extra ₹142 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹9499 (Including GST)

MRP : ₹12900

26% OFF!

Get Extra ₹142 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP V3 Pump

180ft Head, 70 LPM

With Panel And Cable

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 16.5 kg
Flow Rate : 70 lpm
Head : 54 meter

Power : 1.5 Hp
Weight (Approx.) : 16.5 Kg
Flow Rate : 70 lpm
Head : 54 meter
Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 18 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 180 Feet (54 Meter)
Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
Pipe Size (Suction x Delivery) : 32x32 mm (1.25x1.25 inch)
Cooling Type : Water Cooled

Material Of Construction

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl Polycarbonate
Pump Shaft : Stainless Steel

The Jindal 1.5 Hp 18 Stage V3 Single Phase Submersible Pump is a high-performance, water-cooled pumping solution designed for 3-inch borewells. Delivering a 54-meter head and 70 LPM flow rate, it comes fully equipped with a control panel, 60m submersible cable, and safety wire for immediate and secure installation.

Features

Designed specifically for narrow 3-inch (V3 type) borewells.
High-efficiency 18-stage water-cooled mechanism for optimal performance.
Complete package includes control panel, 60m submersible cable, and safety wire.
Heavy-duty construction suited for agricultural, domestic, and commercial water supply.
Operates smoothly on standard single-phase AC electric power supply.

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty

1 Year WARRANTY on manufacturing defects only.

Warranty Terms

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Ensure the pump remains fully submerged to prevent accidental dry running.
Regularly check the control panel and AC power supply for voltage fluctuations.
Inspect the 60m submersible cable and safety wire periodically for wear or tension.
Keep the discharge pipe clear of debris to maintain the 70 lpm flow rate.'
