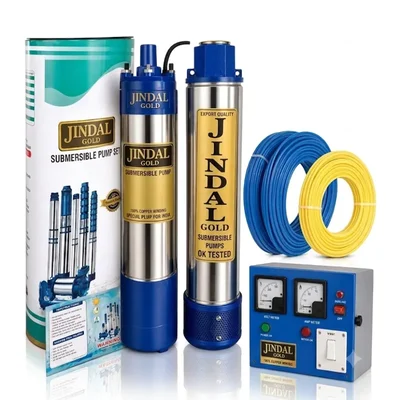

Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire

Brand: Generic ( Made in India )

Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire

Name: Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire
Brand: Generic ( Made in India )
SKU: TI-J1-80113
Price: 8779 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80113

MRP : ₹11900 ₹8779

26% OFF!

Get Extra ₹132 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹8779 (Including GST)

MRP : ₹11900

26% OFF!

Get Extra ₹132 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP 18 Stage V3 Borewell

180ft Head, 70 LPM

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 18 kg
Flow Rate : 70 lpm
Head : 54 meter

Power : 1.5 Hp
Weight (Approx.) : 18 Kilogram
Flow Rate : 70 lpm
Head : 54 meter
Product Name : Borewell Submersible Pump
Wattage : 1.1 Kilowatt
Supply Voltage : 150 to 240 Volt, 50 Hertz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 18 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 180 Feet (54 Meter)
Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 millimeter (1 x 1 inch)
Cooling Type : Water Cooled
Winding Material : Copper

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Die Cast
Impeller : PVC
Pump Shaft : Steel

This water cooled submersible pump is fully submerged in the fluid it pumps, and its motor is cooled by the surrounding water. This design eliminates the need for external cooling, making it highly efficient, quiet, and preventing overheating.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Ensure the pump is fully submerged at all times to prevent dry running and motor damage.
Routinely inspect the 30-meter submersible cable for any signs of cuts, wear, or insulation damage.
Monitor the control panel regularly for unusual voltage fluctuations or sudden drops.
Periodically check the tension and condition of the safety wire holding the pump.
Keep the borewell area clean to prevent mud or debris from blocking the PVC impeller.
