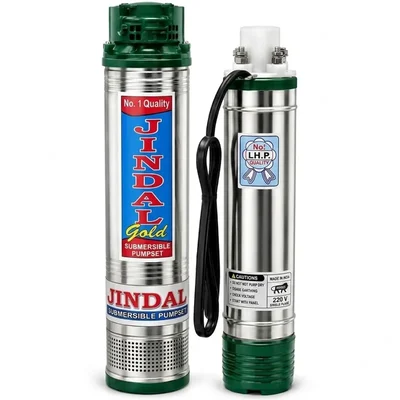

Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH

Brand: Generic ( Made in India )

Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH

Name: Jindal 1.5 HP 18 Stage V3 Single Phase Water Cooled Submersible Pump, 180ft Head, 4200 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-80389
Price: 7299 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80389

MRP : ₹9900 ₹7299

26% OFF!

Get Extra ₹109 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7299 (Including GST)

MRP : ₹9900

26% OFF!

Get Extra ₹109 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.5 HP 18 stage V3 Submersible Pump

180ft max Head, 70 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1.5 hp
Weight (Approx.) : 16.50 kg
Flow Rate : 70 lpm
Head : 54.86 meter

Product Name : Borewell Submersible Pump
Wattage : 1.1 kW
Supply Voltage : 150 to 240 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 18 Stage
Pump Type : V3 Type
Suitable Bore Size : 3 inch
Max. Head Range : 180 Feet (54.86 Meter)
Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : Stainless Steel 410

This borewell submersible pump is designed for extracting water from deep underground sources with high efficiency. Operating fully submerged, this 1.5 HP unit is ideal for residential, commercial, and agricultural water supply applications where reliable moderate flow is required.

Features

Corrosion-resistant stainless steel outer body for long durability.
Specially engineered for reliable operation during low voltage conditions.
High electrical and mechanical efficiency with reduced power consumption.
Dynamic heat dissipation and dynamically balanced rotating parts for smooth operation.
Custom-designed thrust bearings to withstand high axial loads effectively.
Built to handle extreme voltage fluctuations safely.

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Ensure the borewell is flushed clear of silt and mud before lowering the pump.
Never operate the pump dry; always maintain sufficient water levels around the unit.
Check input voltage regularly to ensure it stays within the recommended 150 to 240 volt range.
Inspect control panel electrical connections periodically for loose wiring or wear.
