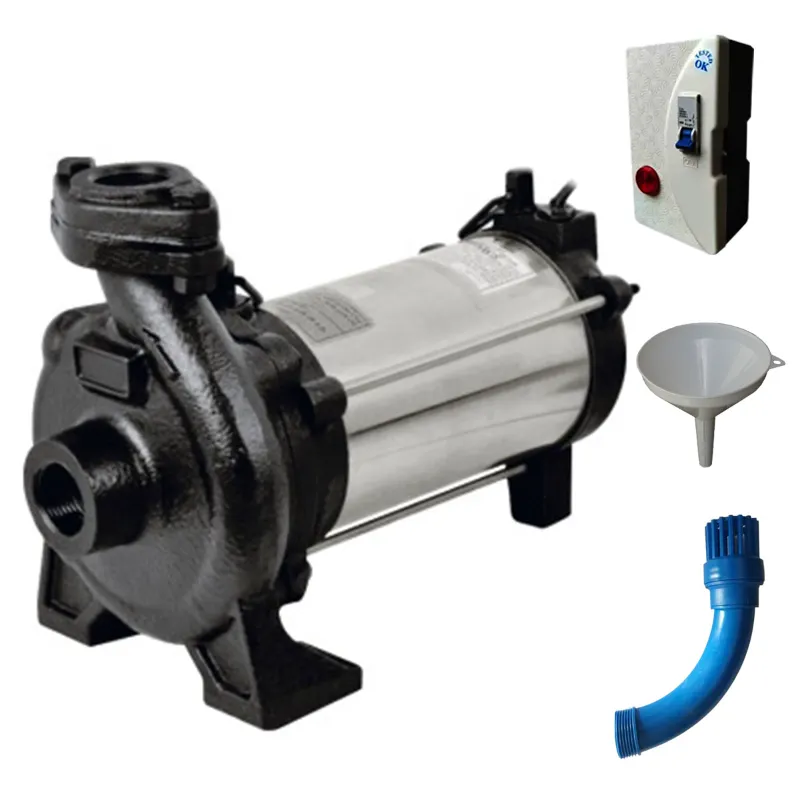

Sharp 1.5Hp Single Phase Openwell Submersible Pump, 36m Max. Head With Starter, One Bend, One Funnel - 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Sharp 1.5 HP Single Phase Openwell Submersible Pump With CP

36M Max. Head

90 LPM Max. Discharge Range

1 Year Warranty

Country of origin: India

Description

Sharp 1.5Hp Single Phase Openwell Submersible Pump, 36m Max. Head With Starter, One Bend, One Funnel - 1 Year Warranty

Description :

• Water lubricated carbon / thrust pad to with stand high axial load.
• High quality oil seal prevents the entry of foreign particles into the motor.
• Coated with ceramic epoxy paint to prevent corrosion.
• Ideally designed impeller dynamically balanced.
• Motor body & rotor shaft are made with stainless steel.

Features :

• Highly rigid cast iron construction
• Brass forged impeller
• Graded steel shaft
• Tested as per IS standards
• Fitted with motor protector (Thermal Overload Protection)
• Mechanical seal with high alumina seal face

Specification :

• Product Type : Openwell Submersible Pump
• Wattage : 1.1 kW
• Electricity Connection : Single Phase
• Rated Voltage : 180 - 240 Volt, 50 Hz, AC Power Supply
• Head Range : 3 to 36 Meter
• Speed : 2800-2900 RPM
• Max. Discharge Range : 1.5 LPS (90 LPM/5400 LPH)
• Pipe Size (Suction x Delivery) : 1.25 x 1 Inch (32x25 mm)

Accessories :

• Starter
• One Bend
• One Funnel (to 4 water)

Areas Of Application :

• Domestic water pumping to overhead tanks
• Curing at construction sites
• Fountains and gardening
• Home pressure boosting systems
• For agricultural use
• For industrial use
• Sprinkles and drip irrigation
• Domestic use

NOTE :

• Please remove two eye bolt and fill water before install.

WARRANTY :

• 1 Year Warranty on Manufacturing Defects Only

Warranty Terms :

• Dry Run Accidental Damages Are not covered in the warranty
• For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
• You have to send the product to the sellers warehouse.
• Buyer has to bear the courier charges of both side for sending the product.

Specifications

 :

• Brand: Sharp
• Power : 1.5 hp
• Weight (Approx.) : 18 kg
• Flow Rate : 90 lpm
• Head : 36 meter
