Brand: Generic ( Made in India )

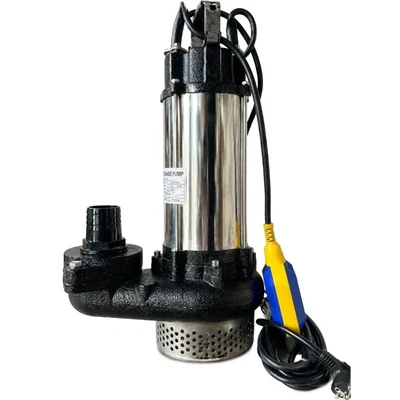

Kisan 1.5HP Cast Iron Sewage Submersible Pump 50mm Outlet 20mm Solid Handling Continuous Duty KSSWP-150
SKU: SI-AE-42208
Estimated Delivery By: Jul 9 - Jul 11
MRP : ₹22300 ₹16500
26% OFF!
Estimated Delivery By: Jul 9 - Jul 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16500 (Including GST)
MRP : ₹22300
26% OFF!
Get Extra ₹248 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kisan KSSWP-150 is a high-performance 1.5HP (1.1 kW) sewage submersible pump.
50mm (2-inch) outlet
50mm (2-inch) outlet
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 18 kg
- Power : 1.5 hp
- Flow Rate : 450 lpm
- Head : 13 meter
- Pump Type: Sewage Submersible Pump
- Power Supply: 220 V, 50 Hz, Single Phase (1Ø)
- Motor Power: 1.5 HP (1.1 kW)
- Motor Type: Oil-Filled Iduction Motor
- Rated Speed: 2800 RPM
- Outlet Size: 50 mm (2 Inch)
- Solid Handling Capacity: 20 mm
- Insulation Class: Class F
- Protection Class: IP68
- Shaft Material: Stainless Steel
- Impeller Material: Cast Iron
- Pump Body Material: Cast Iron
- Mechanical Seal: Silicon Carbide / Carbon Ceramic
- Rated Frequency: 50 Hz
- Voltage Range: 160 – 250 V
- Maximum Liquid Temperature: 30°C
- Duty Type: Continuous Duty
- Cable Length: 8 m (Approx.)
Description
The Kisan KSSWP-150 is a high-performance 1.5HP (1.1 kW) sewage submersible pump featuring a 50mm (2-inch) outlet, designed specifically for efficient wastewater drainage, septic tank clearing, and sewage disposal. Engineered with a durable cast iron body, an oil-filled induction motor, and an IP68 protection class, this continuous duty pump reliably handles solid particles up to 20mm in diameter across demanding residential, commercial, and industrial applications.
Features
:- Heavy-Duty Cast Iron Construction: Designed with a cast iron body and impeller for maximum resistance against wear, corrosion, and rough handling in harsh environments.
- Superior Solid Handling: Effortlessly processes suspended solids up to 20mm in size without clogging, ensuring smooth operations in muddy or debris-rich water.
- High Efficiency Motor: Equipped with a 1.5HP oil-filled induction motor spinning at 2800 RPM for maximum flow performance and cooling efficiency.
- Advanced Mechanical Sealing: Incorporates a high-grade Silicon Carbide / Carbon Ceramic mechanical seal coupled with a stainless steel shaft to protect internal components from leakage.
- Continuous Duty Cycle: Explicitly engineered for continuous operation, allowing prolonged usage in critical dewatering and draining applications without overheating.
- Robust Safety and Insulation: Classified under Insulation Class F and rated IP68 waterproof protection to ensure optimal operator safety and long product life.
- Voltage Fluctuation Resilience: Functions smoothly within a wide operational voltage band of 160V to 250V to counter unstable grid situations.
Applications
:- Sewage Disposal: Transferring raw sewage and domestic blackwater into municipal or localized collection grids.
- Septic Tank Cleansing: Emptying settled sludge and residential septic tanks during routine maintenance.
- Wastewater Drainage: Clearing residential basements, commercial sumps, and flooded parking zones.
- Construction Site Dewatering: Pumping out muddy excavation pits, trenches, and underground water accumulation spots.
- Effluent Handling: Managing industrial runoff, food-processing wastewater, and light commercial waste liquids.
Usage
:- Submerged Installation: Always operate the pump fully submerged in liquid to prevent dry running and to maintain proper motor cooling.
- Stable Power Connection: Ensure connection to a single-phase 220V power outlet equipped with standard grounding; the pump safely tolerates minor shifts from 160V to 250V.
- Debris Clearance Check: Verify that the intake area is free of particles exceeding 20mm in diameter before starting operation to avoid physical blockages.
- Vertical Positioning: Lower and secure the pump vertically into the sump or pit using a dedicated lifting rope rather than pulling by its 8-meter electrical cable.
Maintenance
:- Regular Intake Inspection: Periodically clean the suction base and clear any trapped sludge or long fibers wrapped around the cast iron impeller.
- Cable Verification: Frequently check the 8-meter power cord for physical cuts, cracks, or abrasions to eliminate electrical hazards.
- Seal and Oil Tracking: Inspect the mechanical seal and check the oil level in the induction motor chamber annually to ensure zero liquid ingress.
- Storage Protocols: If storing the pump out of service for extended periods, flush it with clean water, dry thoroughly, and store in a covered, dry place.
