Brand: MSR

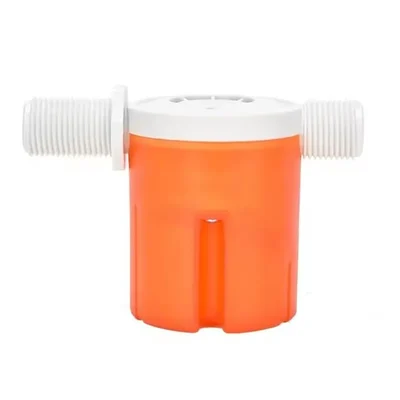

MSR 1/2'' Automatic Water Level Control Valve | High-Pressure Nylon | Inside Type, Side Inner
SKU: TI-M1-51032
Delivery By: Dec 9 - Dec 11
MRP : ₹599 ₹459
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹459 (Including GST)
MRP : ₹599
23% OFF!
Get Extra ₹7 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
MSR 1/2" Automatic Water Level Control Valve
Nylon Material
This water level controller works without electricity
Country of origin: India
Specifications
- Brand: MSR
- Weight (Approx.) : 150 gm
- Size : 1/2 inch
- Material : Nylon
- Working Pressure Range : 0.2 to 15 kg;
- Applicable Medium : Clean water
- Applicable Medium Temperature : ≤70 ℃;
- High Temperature Resistant Medium Temperature : 70 ℃ ~ 120 ℃
- Dimensions (LxWxH) : 12 x 8 x 9 cm
Description
MSR 1/2'' Automatic Water Level Control Valve is a compact, high-pressure nylon float valve designed for reliable water level control in overhead tanks, pools, and water towers. It automatically starts and stops the water supply based on the tank level, ensuring efficient filling without overflow or manual supervision.
This inside-type, side-inner valve offers a neat appearance, small footprint, and simple installation. Made from durable, long-life materials, it operates without electricity, has a low failure rate, and helps save water, making it ideal for both industrial and domestic water systems.
Features
:- Our Automatic Water Level Control Valve is a patented product that is instead of a traditional float valve.
- It automatically controls the water supply and stops according to the water level changes.
- It can solve the water leakage problem and save more than 60% water
Applications
:- Water tank, water tower, livestock drinking, air cooling, hydroponics, machinery, humidifier, swimming pool, toilet, solar energy, water heating boiler, aquarium, and other industrial applications, etc.
Precautions :
- Water pressure reference value : Minimum water pressure 0.2kg; maximum water pressure 15kg
- This product should be installed vertically on a horizontal surface
- This product is the liquid level control valve; when mounted, it must float vertically downward
- The first water pipe is fixed in a horizontal plane, and then the valve of the present specification is attached to its inlet conduits. The main inlet pipe should be suitable for the nominal diameter of the valve
- When used, the beginning of the shut-off valve should be fully open valve
- If the same tank is installing two valves, they should be maintained at the same level.
- Before installing and using this valve, be sure to clean the impurities in the pipeline
- When using the built-in products, there will be water leakage at the bottom, which is normal.
Maintenance :
- When your water quality is poor or hard and impure, it needs proper maintenance. When the user finds that the water filling time is prolonged or there is leakage of water, then MSR water level control valve is removed from the water inlet pipe, and cleaning is performed.
