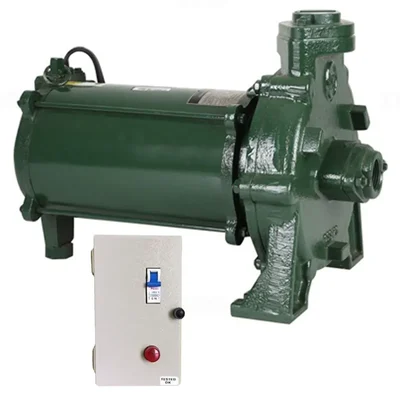

CRI 1 Hp Single Phase Openwell Submersible Pump With Control Panel, 32m Head, ISI Marked (CSS 3H) - 1 Year Warranty

Brand: CRI

CRI 1 Hp Single Phase Openwell Submersible Pump With Control Panel, 32m Head, ISI Marked (CSS 3H) - 1 Year Warranty

Name: CRI 1 Hp Single Phase Openwell Submersible Pump With Control Panel, 32m Head, ISI Marked (CSS 3H) - 1 Year Warranty
Brand: CRI
SKU: TI-C1-20201
Price: 16899 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-C1-20201

MRP : ₹24000 ₹16899

30% OFF!

1607 people have viewed this recently

Get Extra ₹253 OFF on Prepaid Orders

Delivery By: Dec 10 - Dec 12

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹16899 (Including GST)

MRP : ₹24000

30% OFF!

Get Extra ₹253 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

CRI 1 Hp Horizontal Openwell Submersible Pump (CSS 3H)

32m Max. Head, 180 LPM Max, Discharge

Control Panel is included with this openwell pump

1 Year Warranty

Country of origin: India

Brand: CRI
Power : 1 hp
Weight (Approx.) : 30 kg
Flow Rate : 180 lpm
Head : 32 meter

Model No : CSS 3H
Product Type : Horizontal Openwell Submersible Pump
Brand : C.R.I.
Wattage : 0.75 kW
Electricity Connection : Single Phase
Rated Voltage : 220 - 240V, 50Hz, A.C. Supply
Head Range : 32 to 14 Meter (105 to 45.9 Feet)
Discharge Range : 30 to 180 LPM (1800 to 10800 LPH)
Wining Material : Copper
Outlet Size : 25 X 25 mm
Type of Duty : S1 (Continuous)
Speed : 2880 RPM
ISI Marked : Yes

Material Of Construction :

Motor Body : SS 304
Impeller : SS 304
Casing : Cast Iron
Rear Cover : Cast Iron
Shaft : SS 410
Front Bracket : Cast Iron
Shaft Seal : Nitrile Butyl Rubber
Diaphragm : High Nitrile Rubber

Openwell submersible pumps are a type of water pump that is completely submerged and sealed. These pumps are typically installed at the bottom of underground tanks or reservoirs and are connected to a power source for operation.

C.R.I. Horizontal Openwell Submersible Pumpsets are ideally suitable for Openwell / Tanks where a wide fluctuation of water level occur. The pumpset works underwater and rest at the bottom of the well or Tank. Hence suction and priming problem will not arise. The optimal design of impellers and diffusers enables the best possible hydraulic efficiency. Motor sealing is made by polymers, 'O' rings, oil seals and sand guard to avoid ingress of well water/sand into the motor. Pressure equalizing rubber diaphragm is provided to guard the motor from pressure and volume variation of water inside the motor.

Features

Rigid Construction
Long Durability
High Operating Efficiency
Stainless Steel Motor body
Motor is Designed With Higher Cooling Effect to Ensure the Life.
Easy to Dismantle & Repair

Accessories

Control Panel

Applications

Openwell submersible pumps are used in many different industries. These include firefighting, offshore drilling rigs. They are also used in underground storage tanks and reservoirs, swimming pools, cooling water circulating systems, industrial irrigation.

WARRANTY :
