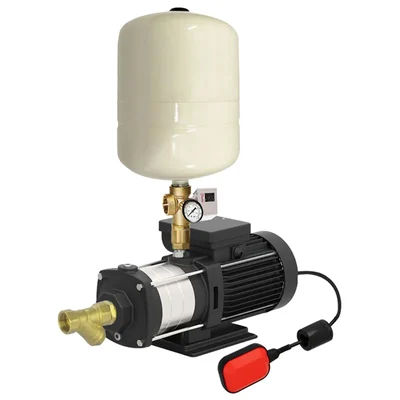

Crompton 1 Hp Single Phase Booster Pump With 24L Tank For 5 Bathrooms, SS Impeller (CFCHM4E1.0B-V24) - 1 Year Warranty

Brand: Crompton

Crompton 1 Hp Single Phase Booster Pump With 24L Tank For 5 Bathrooms, SS Impeller (CFCHM4E1.0B-V24) - 1 Year Warranty

Name: Crompton 1 Hp Single Phase Booster Pump With 24L Tank For 5 Bathrooms, SS Impeller (CFCHM4E1.0B-V24) - 1 Year Warranty
Brand: Crompton
SKU: TI-C1-19810
Price: 28990 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-C1-19810

MRP : ₹30825 ₹28990

6% OFF!

1024 people have viewed this recently

Get Extra ₹435 OFF on Prepaid Orders

Delivery By: Dec 13 - Dec 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹28990 (Including GST)

MRP : ₹30825

6% OFF!

Get Extra ₹435 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Crompton 1 Hp 1Ph Water Pressure Booster Pump, 32X25 mm

35m Max. Head, 123 LPM Max. Discharge

Accessories are included including 24L Tank

1 Year Warranty

Country of origin: India

Brand: Crompton
Power : 1 hp
Weight (Approx.) : 22.5 kg
Flow Rate : 123 lpm
Head : 35 meter

Model No. : CFCHM4E1.0B-V24
Product Type : Water Pressure Booster Pump
Brand : Crompton
Wattage : 0.75 kW
Electricity Connection : Single Phase
Pipe Size (Suction X Delivery) : 32 X 25 mm
Tank Size : 24 Liter
Head Range : 10 to 35 Meter (33 to 115 Feet)
Discharge Range : 123 to 18 LPM (7380 to 1080 LPH)
Recommended Pressure Setting : 1.5 to 3 Bar
No. of Bathrooms Recommended : 5 Bathrooms

Material Of Construction :

Impeller : Stainless Steel- Grade SS304
Diffuser Bowl : Stainless Steel- Grade SS304
Motor Body Material : Aluminium Extruded- Grade HE9
Shaft : Stainless Steel- Grade SS431
Winding Material : Copper Winding
Delivery Casing : Cast Iron-IS210 Grade FG 200
Y Strainer : Brass
Fan : NYLON 6
Fan Cover : PP GF 30%

A single-phase booster pump with tank is a type of water pressure booster system designed to increase water pressure and flow rate in homes and small businesses. It ensures a steady flow of water by eliminating fluctuations. Water enters the booster pump from the input and exits through the outlet thanks to the impeller. The impeller is rotated by the motor.

Features

Automatic Operation : As per water requirement, pump automatically starts when pressure level drops below set pressure.
Noiseless Operation : Pump noise is less than 60db.
Brass Strainer : High quality Y-strainer provided to avoid foreign particle entry.
Less Power Consumption : High operating efficiency results in high flow rate and low electricity bill.
Dry Run Protection : Provided by using float switch.
Constant Pressure Application : Gives constant pressure at all taps.
