Brand : CRI

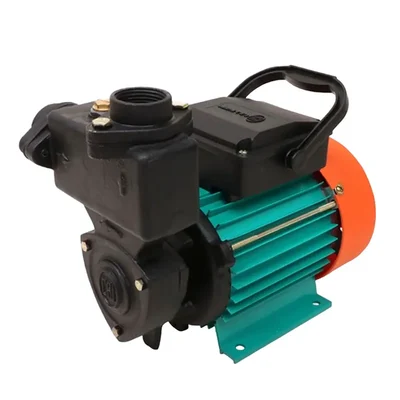

CRI 1 Hp 1Phase Copper Winding Mini Self Priming Monoblock Pump, 30m Head, 25X25mm (ELSA 100) - 1 Year Warranty
SKU : TI-C1-19908
MRP : ₹6000
₹4700
22% OFF!
-
1
+
3205 people have viewed this recently
Get Extra ₹71 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1 Hp 1Ph Self-Primig Monoblock Pump (ELSA 100)
30m Max. Head, 2965 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 1 hp
  • Weight (Approx.) : 8 kg
  • Flow Rate : 49 lpm
  • Head : 30 meter
  • Model No. : ELSA 100
  • Product Type : Self- Priming Monoblock Pump
  • Brand : CRI
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
  • Pipe Size (Suction X Delivery) : 25X25 mm
  • Suction Capacity : 8 Meter
  • Head Range : 6 to 30 Meter (20 to 98 Feet)
  • Discharge Range : 2965 to 300 LPH
  • Winding Material : Copper
  • Speed : 2880 RPM

Material Of Construction :
  • Pump Casing : Cast Iron
  • Impeller : High Tensile Brass
  • Rotor : Aluminium Die Cast
  • Motor Shaft : SS 410
  • Cooling Fan : Poly Propylene - Co Polymer
  • Mechanical Seal : Carbon & Ceramic
Description
C.R.I. Self-priming monoblock pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noise free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. Non-self priming pumps with end suction and radial delivery.

Features

 :
  • Built-in with imported Thermal Overload Protector.
  • Specially designed for wide voltage operation.
  • Powder coated multi-color stator body.
  • Sturdy and compact
  • Double sealed ball bearing, so no need of external lubrication.

Applications

 :
  • Domestic
  • Small Garden
  • Pressure Boosting
  • Civil Application
  • RO Applications
  • House Watering System

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only.
